12 31 ... Replacing alternator belt pulley: Removal
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove and install alternator drive belt.
Depending on alternator type, grip shaft with:
- hexagon socket
- multi-tooth socket or
- Torx socket wrench

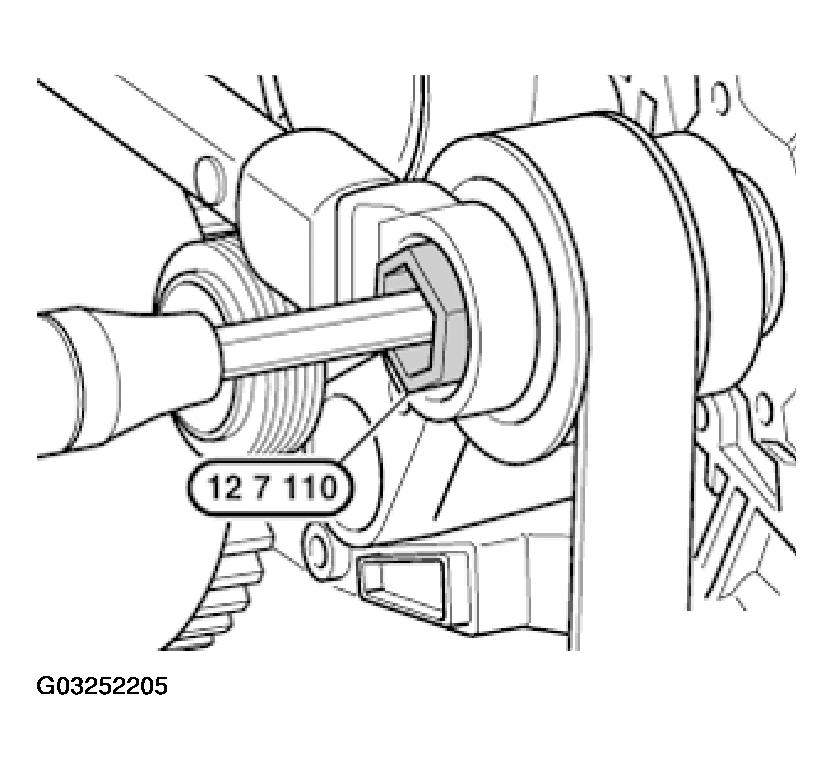

Release nut with special tool 12 7 110.
Installation:
Tightening torque, see 12 31 2AZ / 12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
