11 14 080 Removing and installing timing case cover, top left (M62 VANOS from 9/98): Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

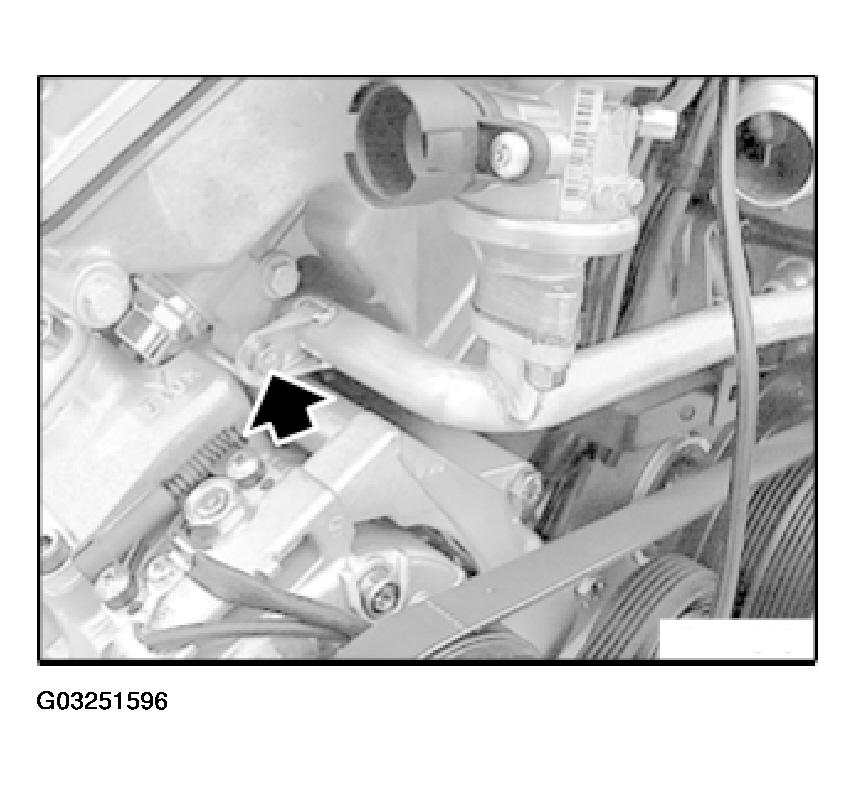

Clean sealing faces on cylinder head, replace sealing ring on secondary-air line and apply a thin coat of grease as anti-friction agent.

Fig 1: Detaching Secondary-Air Line On Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

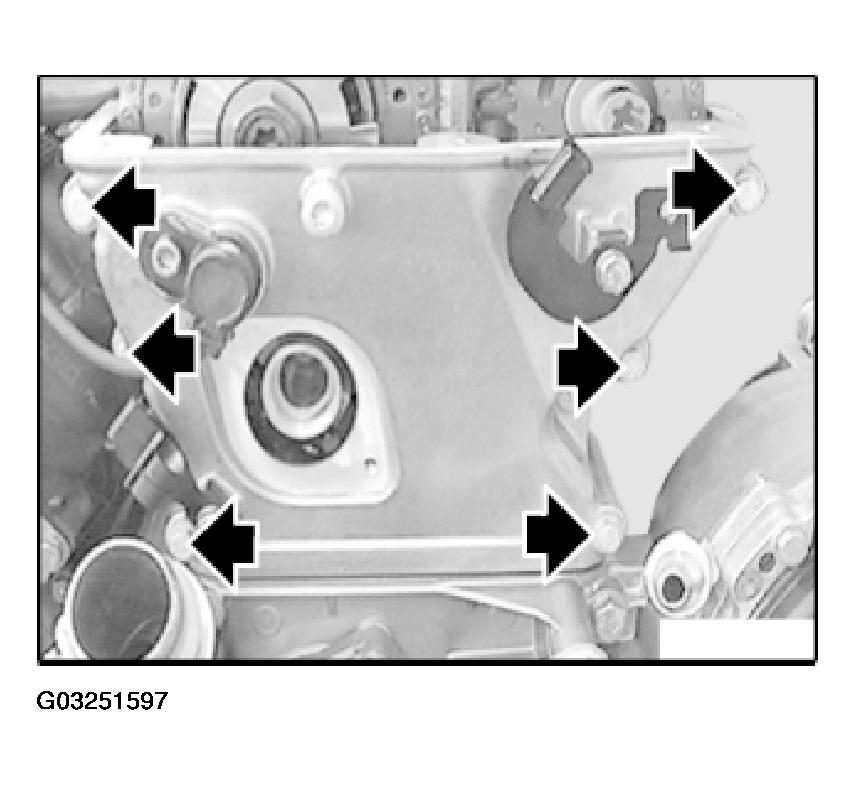

Unfasten timing case cover.

Fig 2: Unfastening Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber sealing strip.

Clean groove for rubber profile seal and sealing surfaces of remains of seal.

Fig 3: Removing Rubber Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Keep sealing faces clean and free of oil.

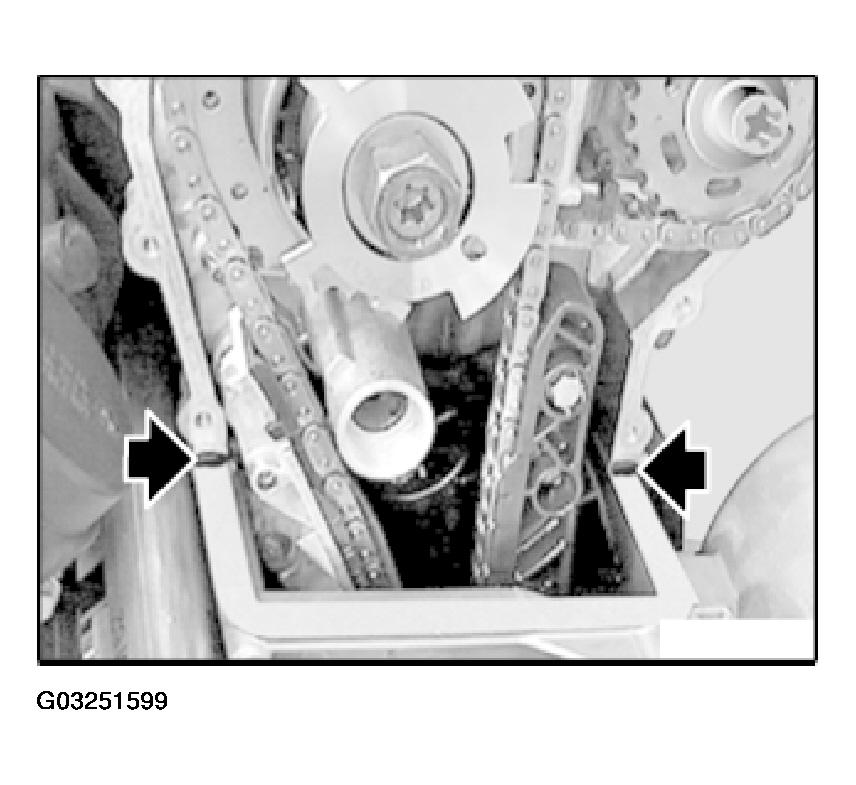

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover.

Fig 4: Identifying Joint Between Cylinder Head And Lower Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Seat new rubber seal in groove.

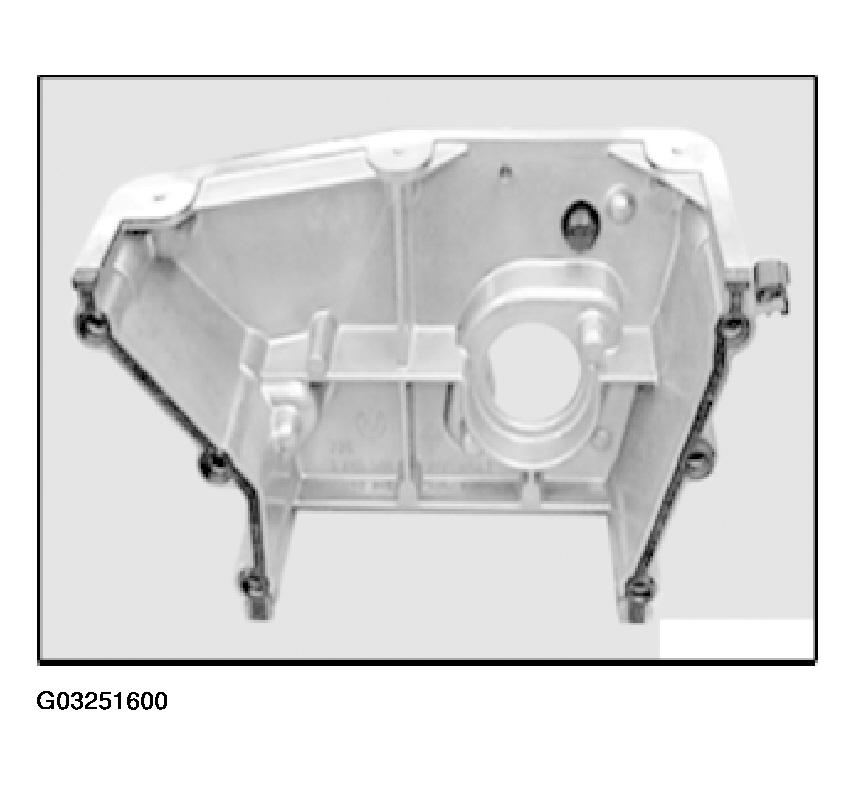

Fig 5: Seating New Rubber Seal In Groove

Courtesy of BMW OF NORTH AMERICA, INC.

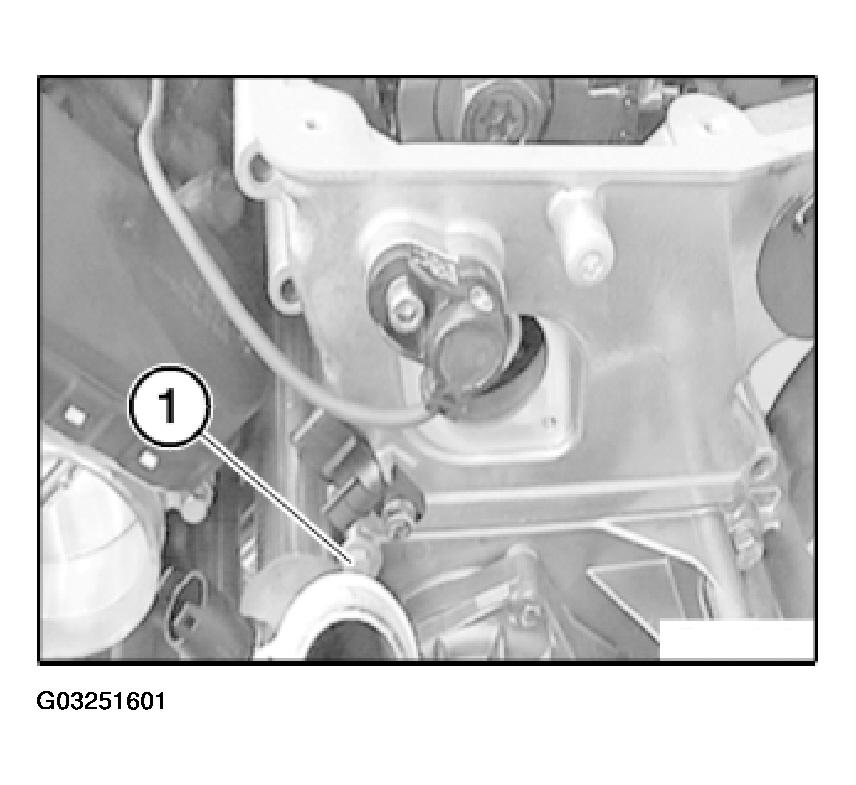

Ensure that seal is correctly seated, then fit timing case cover with inserted screw (1).

NOTE: It is not possible to insert screw (1) after fitting the timing case cover.

Fig 6: Inserting Screw To Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

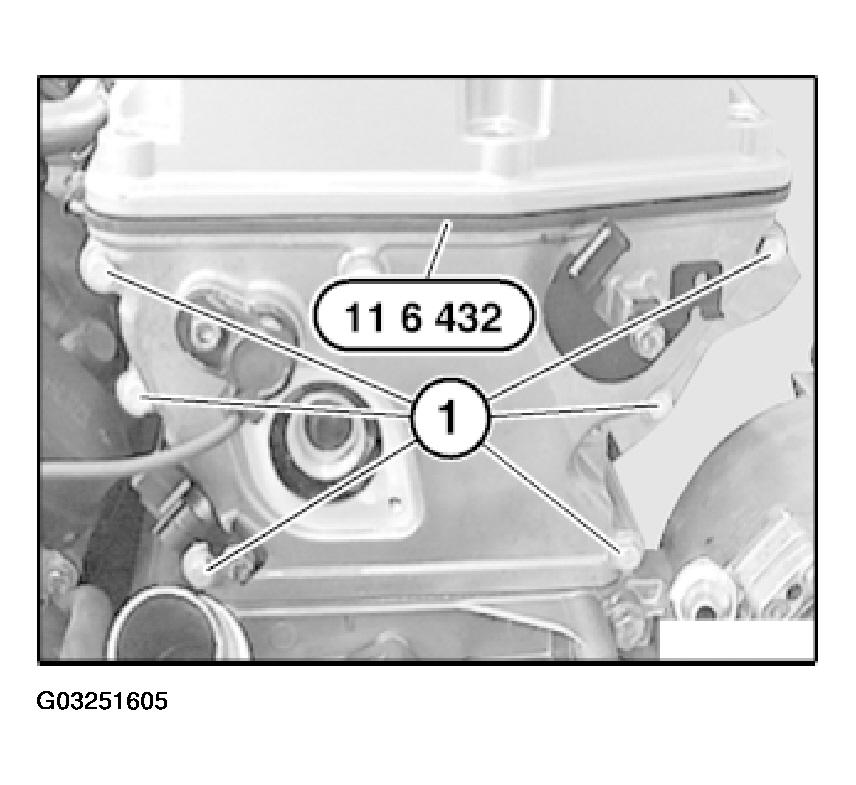

Install screws (1) and fit flush with cylinder head.

Fig 7: Identifying Screw For Fitting Flush With Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Remove outer and inner gasket from cylinder head cover.

Insert special tool 11 6 432 from special tool kit 11 6 430 in groove of cover and fit cylinder head cover.

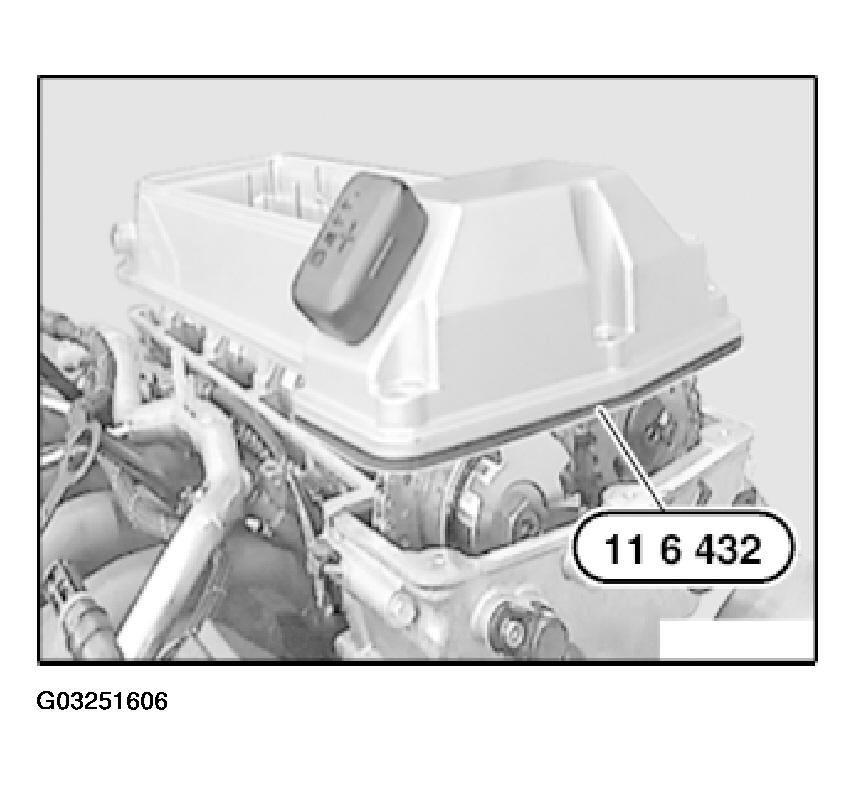

Fig 8: Fitting Cylinder Head Cover Using Special Tool 11 6 432

Courtesy of BMW OF NORTH AMERICA, INC.

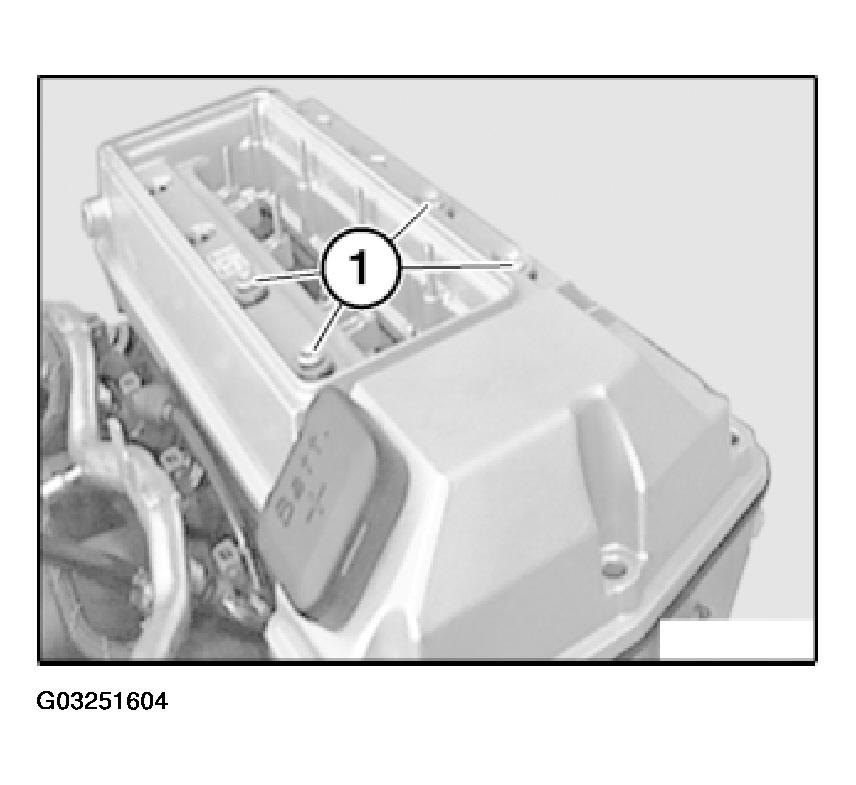

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening Torque,

refer to 11 12 11AZ in ENGINE - TIGHTENING TORQUES

NOTE: The timing case cover is pressed down onto level of cylinder head by cylinder head cover.

Fig 9: Installing Cover Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

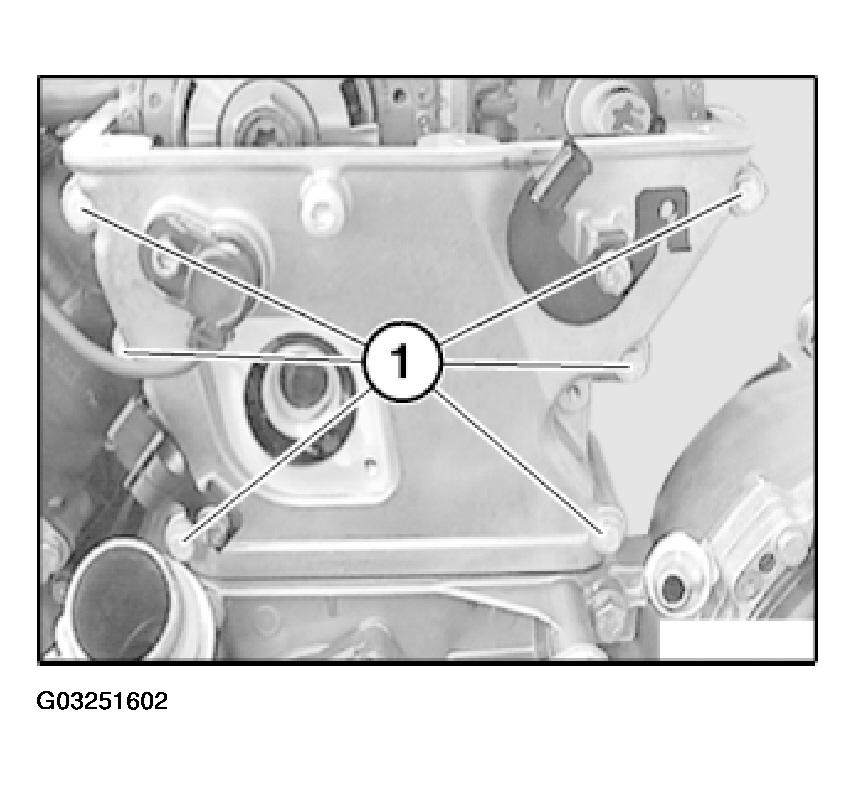

Tighten screws (1) on timing case cover in two passes.

Fig 10: Tightening Screws On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover and remove special tool 11 6 432.

Fig 11: Removing Special Tool 11 6 432 From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove solenoid valve of camshaft adjustment unit, left,

refer to 11 36 585 REMOVING AND INSTALLING/REPLACING SOLENOID VALVE OF CAMSHAFT ADJUSTMENT UNIT, LEFT (M62 VANOS FROM 9/98) .

Assemble engine.
