11 36 585 Removing and installing/replacing solenoid valve of camshaft adjustment unit, left (M62 VANOS from 9/98)

Remove intake filter housing with air-mass flow sensor.

Remove fan impeller with fan clutch,

refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

Unfasten drain plug for coolant on left engine block.

Drain and dispose of coolant.

Replace sealing ring on drain plug.

Tightening Torque,

refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES

Top cup coolant. Vent cooling system and check for leaks,

refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

Pull lock (1) and detach water hose.

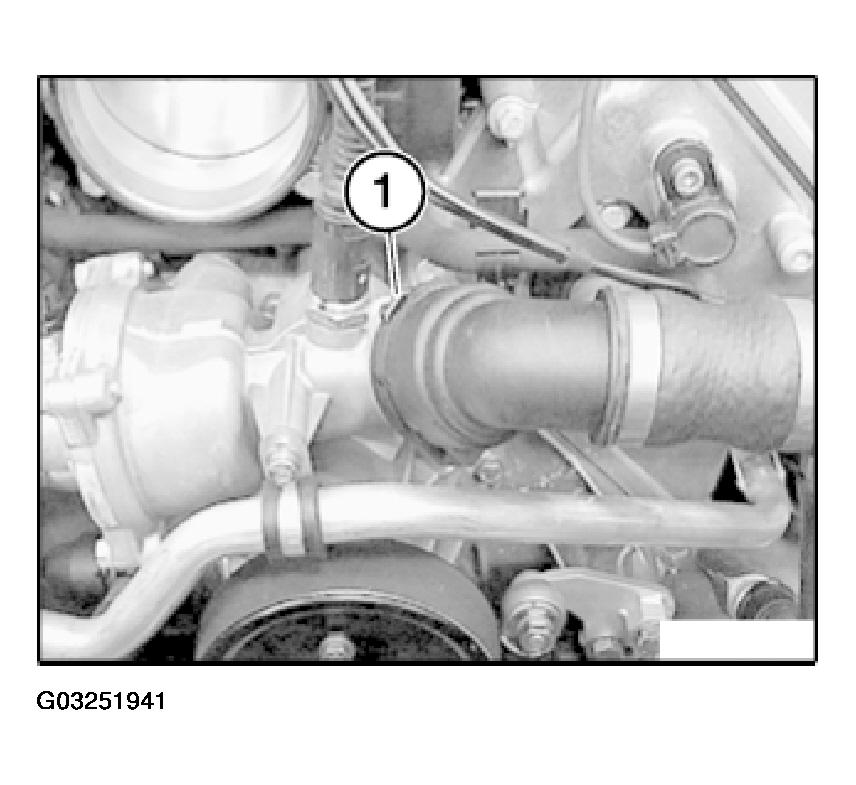

Fig 1: Identifying Water Hose Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

Release screws on sealing flange.

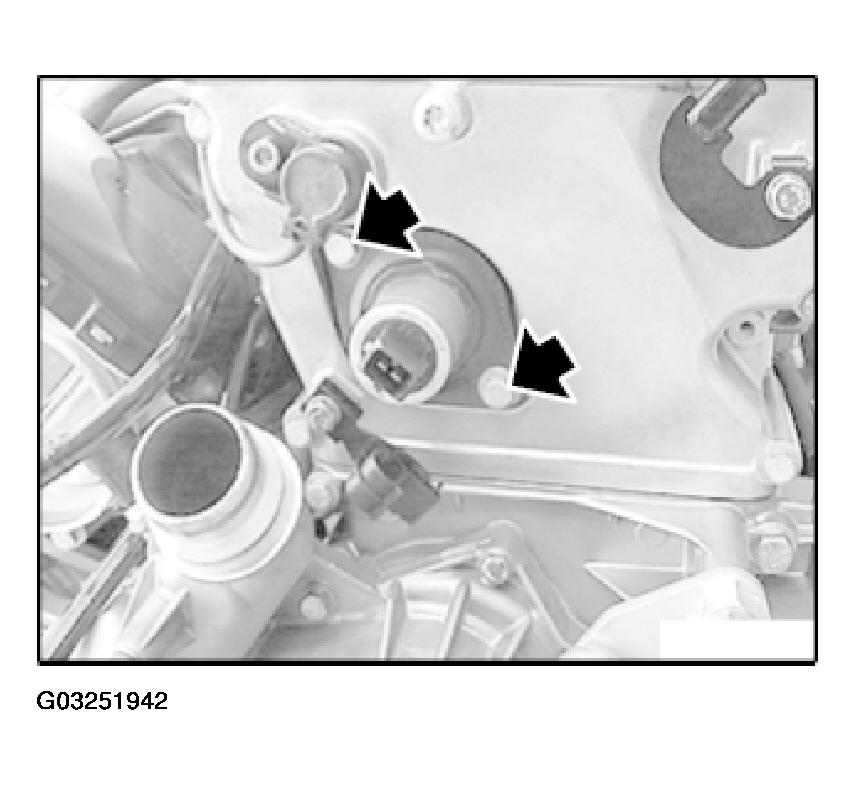

Fig 2: Releasing Screws On Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, clean solenoid valve with a cloth.

Remove sealing flange (1).

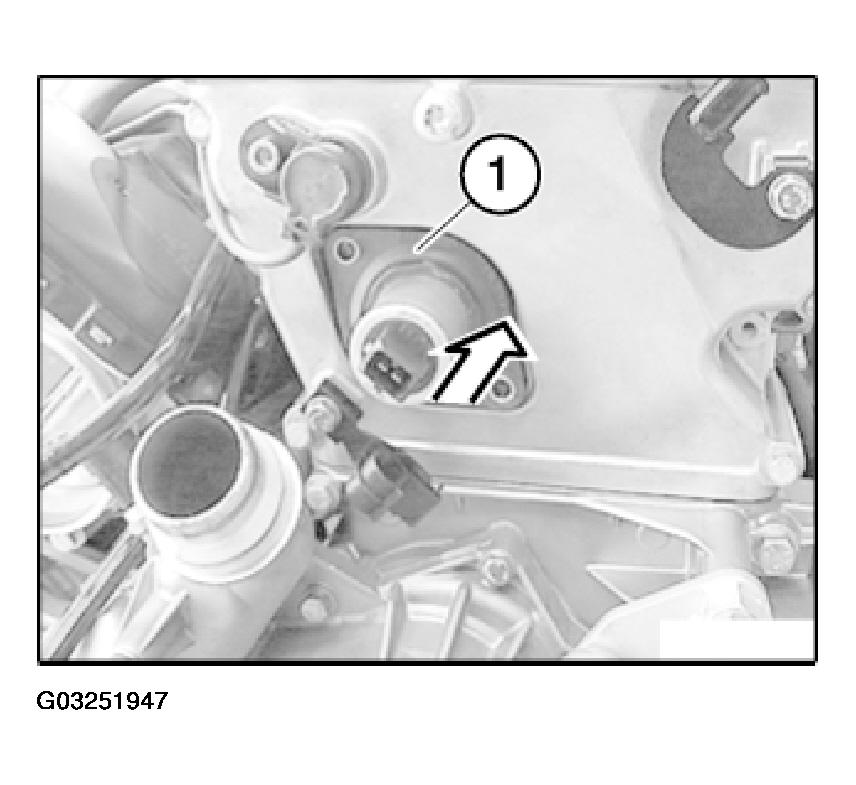

Fig 3: Removing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Release solenoid valve with special tool 11 6 420.

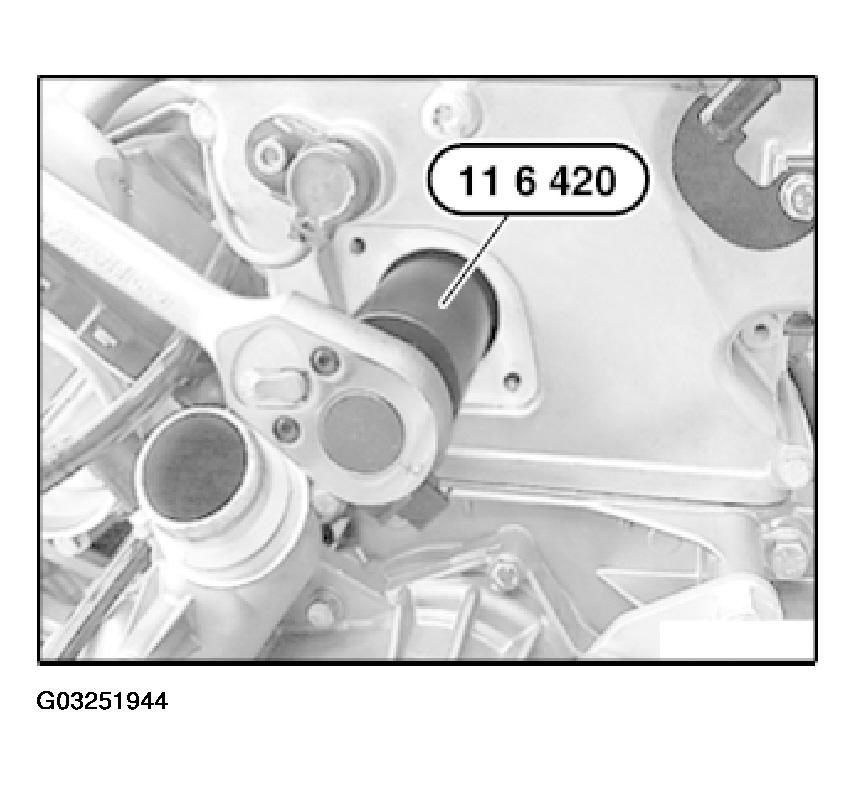

Fig 4: Releasing Solenoid Valve With Special Tool 11 6 420

Courtesy of BMW OF NORTH AMERICA, INC.

Install solenoid valve (1).

Clean solenoid valve (1) and sealing face (2).

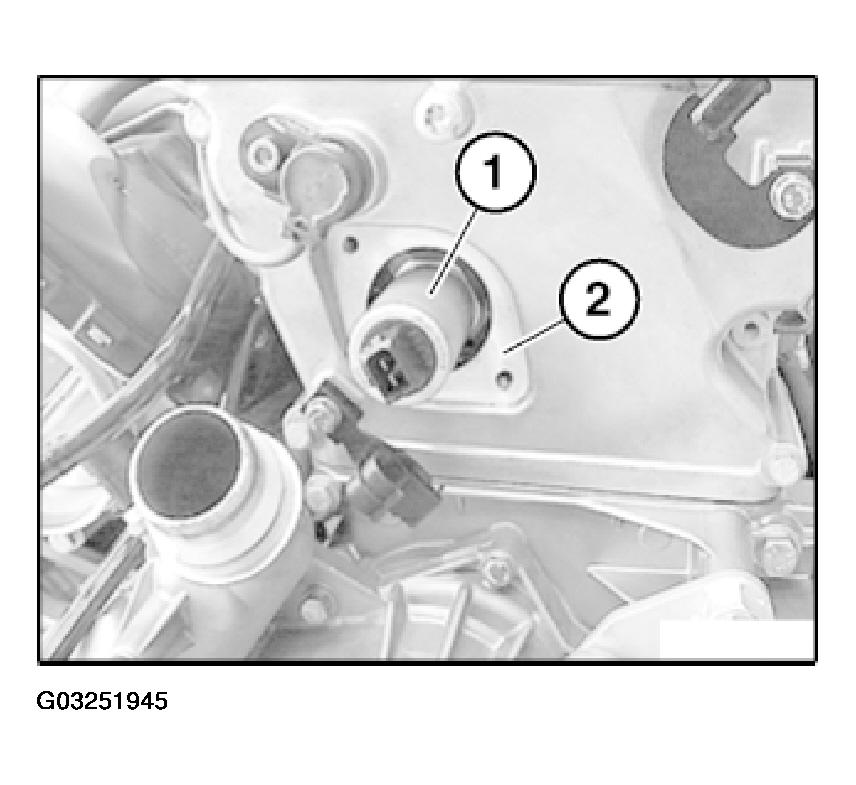

Fig 5: Installing Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down solenoid valve with special tool 11 6 420.

For tightening torque,

refer to 11 36 12AZ in ENGINE - TIGHTENING TORQUES

Fig 6: Tightening Solenoid Valve With Special Tool 11 6 420

Courtesy of BMW OF NORTH AMERICA, INC.

Check sealing flange (1), replace if necessary.

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 7: Installing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws on sealing flange and tighten down.

Fig 8: Inserting Screws On Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.
