65 50 170 Replacing the cover for the Central Information Display (CID) (as of 10/2009)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).

Necessary preliminary work:

Remove Central Information Display

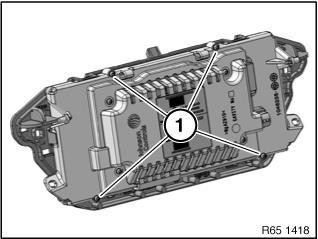

Release screws (1). Tightening torque 5.5 INCH lbs. (63 N.m). Note: To tighten screws, use special tool 00 9 460.

Fig 1: Release Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage !

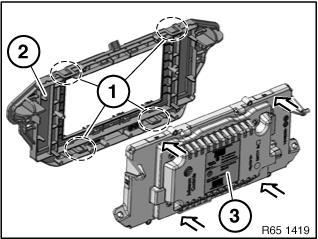

Carefully unlock latch mechanisms (1) with a suitable tool. Remove cover (2) from Central Information Display (3).

Fig 2: Carefully Unlock Latch Mechanisms (1) With A Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before/after assembly, cover is bolted to the Central Information Display, correct installation position must first be checked!

Installation note: Before connecting the screw connection, check whether latch mechanisms marked with an arrow are correctly seated.

Fig 3: Check Whether Latch Mechanisms Marked With An Arrow Are Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Before connecting the screw connection, check all-round rim at the places marked with an arrow.

Fig 4: Check All-Round Rim At The Places Marked With An Arrow

Courtesy of BMW OF NORTH AMERICA, INC.
