51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317 , see 00 9 317 TRIM PANEL WEDGE
Necessary preliminary tasks:
- Remove front entrance cover strip (inside), see 51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip .
- Remove trim for instrument panel, bottom left, see 51 45 181 Removing and installing/replacing trim for instrument panel, bottom right .

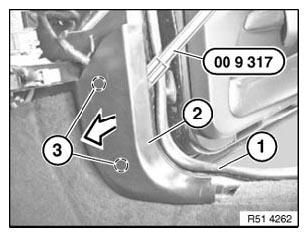

Detach mucket (1) in area of side trim panel (2).
Unclip side trim panel (2) with special tool 00 9 317 in direction of arrow at retaining points (3) and remove.
