51 16 378 Removing and installing/replacing hinge for upper glovebox lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glovebox, see 51 16 360 Removing and installing right glovebox .
Remove upper glovebox lid, see 51 16 371 Removing and installing/replacing upper glovebox lid .

Close glovebox lid.

Release tab washer (1) and remove pin (2).

Open glovebox lid.

Disconnect spring (3).

Release screw (4).

Feed out damping element (5).

Installation:

Replace tab washer (1) and pin (2).

Fig 1: Identifying Tab Washer, Damping Element And Pin

G04791542

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Take off holder (2).

Feed out hinge (3).

Fig 2: Identifying Hinge, Holder And Screws

G04791543

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Spring (1) must not be damaged.

If necessary, pull out shaft (2) and replace faulty bushings (4).

Markings (3) on bushing (4) and hinge must line up.

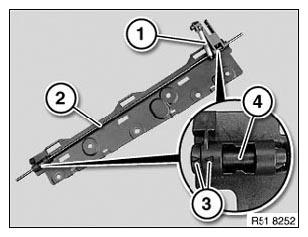

Fig 3: Identifying Markings, Bushing, Shaft And Spring
