51 16 360 Removing and installing right glovebox

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove Central Information Display, see 65 50 057 REMOVING AND INSTALLING REPLACING CENTRAL INFORMATION DISPLAY (CID) .
Remove right fresh-air grille, see 64 22 135 REMOVING AND INSTALLING OR REPLACING LEFT FRESH-AIR GRILLE .
Remove insert for glovebox, see 51 16... Removing and installing insert for right glovebox .

Lever out cover (1) and release screw underneath.

Unfasten screws (2 and 3).

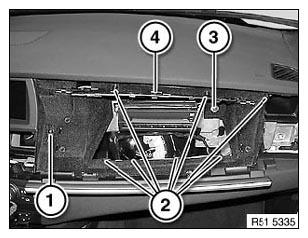

Fig 1: Identifying Cover And Screws

G06212556

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) on left and right at lock (2).

Unclip light (4) and disconnect plug connection.

Installation:

Carry out function check on emergency release mechanism.

Fig 2: Identifying Bowden Cable, Lock And Light

G06212557

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out glovebox (1) slightly.

Disconnect all plug connections (2) and detach cable from glovebox.

Disengage Bowden cable (3) on left and right at lock (4).

Remove glovebox (1).

Fig 3: Identifying Bowden Cable, Lock And Glovebox

G04791547

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage Bowden cable head (1) before inserting glovebox on left and right.

Feed in spacer (2) after inserting glovebox.

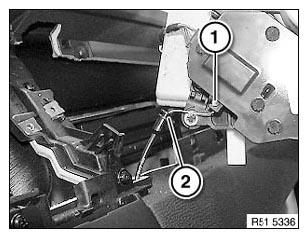

Fig 4: Identifying Bowden Cable Head And Spacer

G06212559
