51 16 176 Removing and installing/replacing center armrest on storage compartment on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322 , see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS

Necessary preliminary tasks:

Remove storage box, see 51 16 240 Removing and installing/replacing rear storage box

If necessary, release dummy plate (2) at catches (3) and remove from storage box (1).

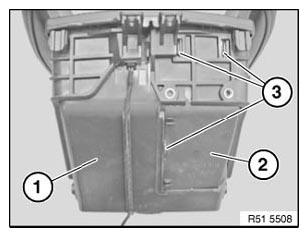

Fig 1: Identifying Dummy Plate, Catches And Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining lugs (2) with special tool 00 9 322 .

Feed center armrest (1) in direction of arrow out of storage box (4).

Installation:

Retaining lugs (2) and guides (3) must not be damaged.

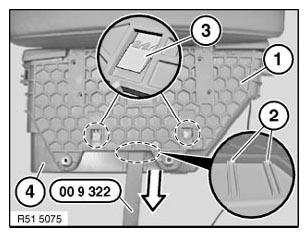

Fig 2: Identifying Retaining Lugs, Centre Armrest And Guides
