51 16 130 Removing and installing/replacing left or right knee pad
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim from cup holder at front, see 51 16 193 Removing and installing/replacing trim on front cup holder .

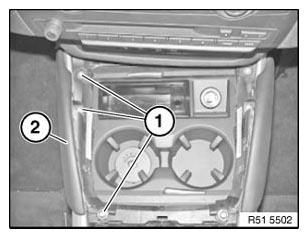

Release screws (1).
Lift knee pad (2) out of center console.
