51 47 157 Removing and installing/replacing cover for left or right capping in luggage compartment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim, see left luggage compartment wheel arch trim and right luggage compartment wheel arch trim .
- Remove D-pillar trim panel., see 51 43 259 Removing and installing/replacing trim for rear roof pillar (D-pillar), left or right .

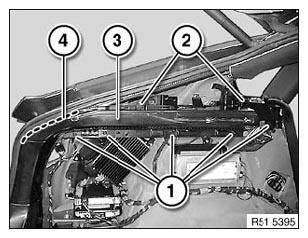

Release screws (1) and (2).
Remove capping cover (3).
Installation:
Mucket must overlap capping cover (3) along dashed line (4).
