17 51 000 Removing and installing/replacing charge air cooler (N54, N55)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Remove underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

If active front steering is fitted: Remove fan cowl

IMPORTANT: Coat sealing rings of quick-connect couplings with antiseize agent.
Pressure pipes cannot be fitted without antiseize agent.

Unclip coolant line (1) from holders.

Fig 1: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

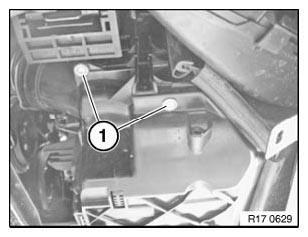

Remove intercooler cover.

(Picture shows right bolts)

Fig 2: Identifying Intercooler Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

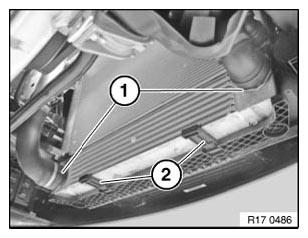

Unlock quick-connect couplings (1) and detach charge-air hoses.

Remove intercooler.

Installation:

Charge-air hoses must audibly snap into place.

Coat sealing rings of charge-air hoses with antiseize agent.

Pressure pipes cannot be fitted without antiseize agent.

Fig 3: Unlocking Quick-Connect Couplings

Courtesy of BMW OF NORTH AMERICA, INC.
