17 11 035 Removing and installing/replacing fan cowl with electric fan (N54)

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Switch off ignition
• Remove underbody protection  . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .

Lever expander rivets (1) out of transverse reinforcement.

Press lock and raise intake duct (2).

Detach intake duct (2) from air filter housing and remove.

Fig 1: Identifying Intake Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable for engine bonnet/hood actuator from transverse reinforcement (1).

Detach A/C line from holder.

Release screws on left and right sides. Tightening torque 51 71 4AZ  , see 51 71 SEALS AND LOOSE BODY PARTS

Remove cross-brace (1).

Fig 2: Identifying Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Fig 3: Identifying Plug

Courtesy of BMW OF NORTH AMERICA, INC.

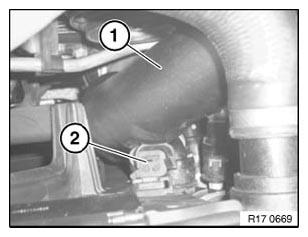

Press hose (1) out of holder (2).

Fig 4: Pressing Hose Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

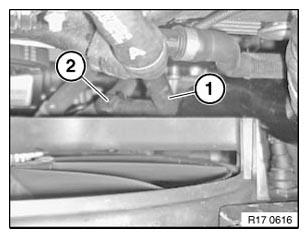

Pull pressure pipe (1) out of holder (2).

Fig 5: Pulling Pressure Pipe Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Raise fan cowl (2) until holder (3) can be brought into assembly position.

Fig 6: Raising Fan Cowl Until Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Feed out fan cowl (2) towards top and remove.

Fig 7: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert retaining tab (1) at bottom on module carrier.

Fig 8: Identifying Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.
