66 20 508 Removing and installing (replacing) control unit (Park Distance Control) (Coupe/Convertible)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
. See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove panel for passenger compartment partition . See 51 47 143 REMOVING AND INSTALLING/REPLACING PANEL FOR PASSENGER COMPARTMENT PARTITION .

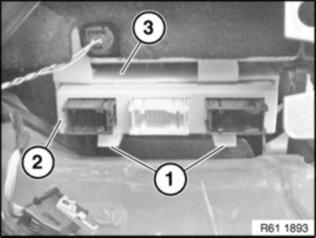

Disconnect plug connection (1).
Unlock catch (1) and remove control unit (2) from device carrier (3).
Replacement: Carry out programming/coding.
