51 47 143 Removing and installing/replacing panel for passenger compartment partition

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rest side section on left/right. See SEATS - REPAIR .

Version with ski bag:

Remove trim for ski bag

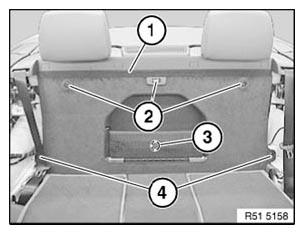

Pull off cover (1) downwards.

Unclip trims (2).

Release screw (3) and clips (4).

Fig 1: Identifying Trims, Screw And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

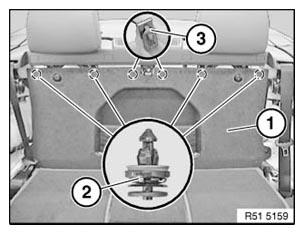

Pull panel (1) towards rear and thereby release clips (2) and retainers (3).

Feed out trim (1).

Installation:

If necessary, replace faulty clips (2) and retainers (3).

Fig 2: Identifying Feed Out Trim With Clips And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

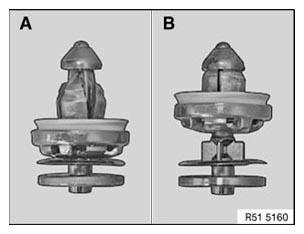

After removal clips can be in position A.

For installation clips must be in position B.

Fig 3: Identifying Clips In Position A

Courtesy of BMW OF NORTH AMERICA, INC.
