63 99 431 Replacing bulb(s) for ceiling light (roof switch center)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (interior lights )

Necessary preliminary tasks:

Remove roof switch cluster . See 61 31 043 REMOVING AND INSTALLING OR REPLACING ROOF SWITCH CENTRE .

Turn bulb holders in direction of arrow and pull out of roof switch center.

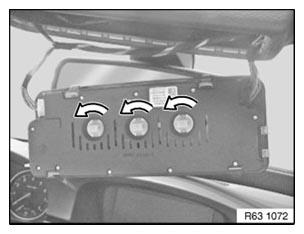

Fig 1: Turning Bulb Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Make sure bulb holders are correctly seated and engaged in roof switch center.

Pull bulb (1) out of bulb holder (2). Installation: Note type of bulb.
