51 13 023 Removing and installing/replacing grille in engine hood/bonnet on left or right

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove frame for grille

Pull grille (1) in direction of arrow towards rear and remove.

Installation:

Make sure grille (1) is correctly installed in guides of engine hood/bonnet.

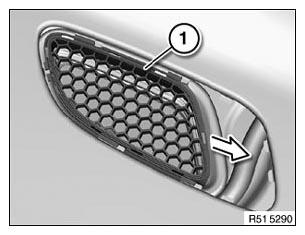

Fig 1: Identifying Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on grille must not be damaged.

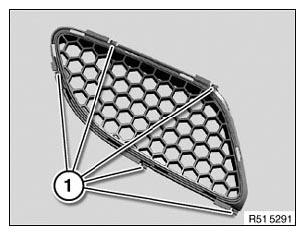

Fig 2: Identifying Catches On Grille

Courtesy of BMW OF NORTH AMERICA, INC.
