51 13 017 Removing and installing/replacing frame for grille in engine hood/bonnet on left or right
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 323
See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

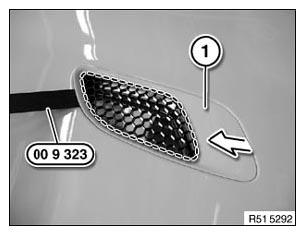

Lever out frame (1) with special tool 00 9 323 along dashed line.
Carefully pull frame (1) in direction of arrow out of guide and remove.
Installation:
Make sure frame (1) is correctly seated in respective locators.
Installation:

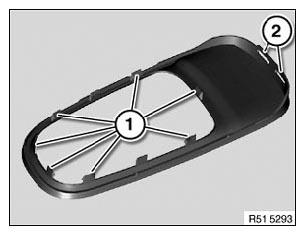

Catches (1) and guides (2) must not be damaged.
