51 44 011 Removing and installing or replacing roofliner (with slide/tilt sunroof)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove sun visors and counter supports on left/right.
If necessary, remove both mirror lights . See 63 31 050 REMOVING AND INSTALLING/REPLACING MIRROR LIGHT .
Remove roof light (front) . See 61 31 043 REMOVING AND INSTALLING OR REPLACING ROOF SWITCH CENTRE or 63 31 000 REMOVING AND INSTALLING OR REPLACING COMPLETE ROOF LIGHT (FRONT) .
Remove trim panels for roof pillar at front left/right (A-pillar trims)
Remove front/rear handles
Remove trim panels for door pillar on left/right (B-pillar trims)
Remove trim panels for roof pillar at rear left/right (C-pillar trims)
Remove roof light (rear) . See 63 31 004 REMOVING AND INSTALLING OR REPLACING COMPLETE CEILING LIGHT (REAR, WITH MODULE FOR PASSENGER COMPARTMENT PROTECTION) .
Remove trim for auxiliary brake light . See 63 25 000 REMOVING AND INSTALLING/REPLACING AUXILIARY BRAKE LIGHT .
Remove left front seat . See SEATS .

IMPORTANT: When removing, do not touch edges of roofliner.

Move seat back of right front seat to maximum rear position.

Release expander rivets (1).

Detach roofliner (2) from Velcro-type fasteners (3).

Detach roofliner (2) from clips (4).

Detach mucket (6) towards inside.

Detach mucket (5) from all doors in area of roofliner (2).

Lay roofliner (2) downwards.

Fig 1: Identifying Roofliner And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The following tasks must be carried out with a second person assisting:

Tilt headliner and remove to left rear door.

Installation:

Following parts of roofliner must not be damaged or missing:

Mounting and frame (1) for front mounting bracket
Wiring harness (2)
Mounting and frame (3) for rear mounting bracket
Velcro-type fasteners (4)
Clips (5).

Fig 2: Identifying Velcro-Type Fasteners And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Depending on the build date/version, replacement can involve different Velcro-type connections.
Mixed installation of the Velcro-type connection is not permitted.

In order to avoid mixed installation, remove the old Velcro-type material and attach the new Velcro-type material.

New and old Velcro-type fasteners differ in color:

Black: Old Velcro-type fastener

White: New Velcro-type fastener

Only black/black or white/white pairings are permitted.

Procedure for replacing Velcro-type connection:

Detach Velcro-type connection from slide/tilt sunroof or console connection.

Remove adhesive residue.

Clean adhesive area with spirit.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

Attach new Velcro-type connections.

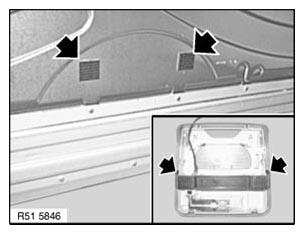

Fig 3: Locating Adhesive Area

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing version with mirror lights:

Cut out premarked cutout area (1) for left/right mirror light with a scalpel.

IMPORTANT: Ensure a clean cut so that the headliner material is not damaged on the inside.

Fig 4: Identifying Premarked Cutout Area

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing version with cable to inside rearview mirror:

Mark cutout (1) on roofliner.

A= Centre of roofliner

B= 14 mm

C= 20 mm

Cut out cutout (1) with scalpel.

IMPORTANT: Ensure a clean cut so that the headliner material is not damaged on the inside.

Fig 5: Identifying Cutout On Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation sequence:

Secure roof liner with mucket
Secure roofliner in middle to Velcro-type fastener
Snap roofliner at rear onto clips
Insert expander rivets at front
Screw down grab handles at front on left/right
Screw down grab handles at rear on left/right
Screw down sun visors and counter supports
Add final details to vehicle
