51 12 828 Removing and installing/replacing left or right guide for rear bumper

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Unscrew nuts (1).

Remove guide (2).

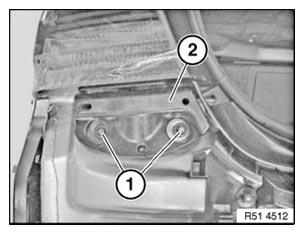

Fig 1: Identifying Nuts And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on holder (2) must not be damaged or missing.

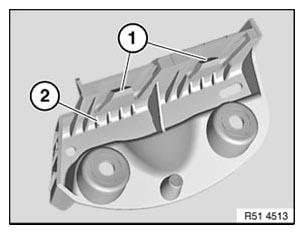

Fig 2: Identifying Catches And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
