51 12 801 Removing and installing/replacing holder for rear left or right bumper

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper trim

E93 only:

If necessary, release aerial/antenna holders (1 and 2) from holder (3).

Installation:

If necessary, replace faulty aerial/antenna holders (1 and 2).

Fig 1: Identifying Aerial/Antenna Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Release nuts (3) and remove bracket (4).

Installation:

Make sure lugs (5) of underbody panelling run into guides on holder (4) at bottom.

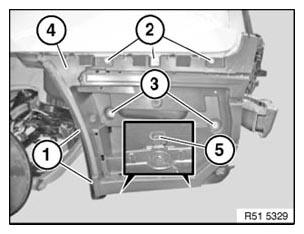

Fig 2: Identifying Nuts, Bracket And Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify sheet nuts (3)
Replace foam seal (4)

Installation:

Catches (1) and guides (2) must not be damaged.

If necessary, replace faulty metal nuts (3).

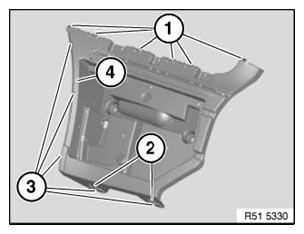

Fig 3: Identifying Catches, Guides And Faulty Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
