51 46 007 Replacing panel for rear window shelf (parcel shelf)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear window shelf
Specification with tweeter/treble speaker:
Remove left/right tweeter . See 65 13 195 REMOVING AND INSTALLING/REPLACING REAR TREBLE SPEAKER (IN REAR SHELF) .

Specification with roller sun blind:

Remove trims (1).

Press roller sun blind (2) together at (A) in direction of arrow and press through from (A) to (B).

Remove roller sun blind (2) towards bottom.

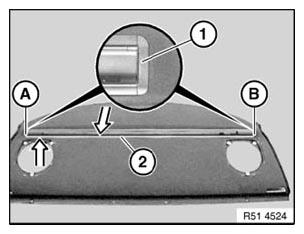

Fig 1: Identifying Trims And Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Specification with through-loading system:

Release nut (1) on underside of rear window shelf (2) and remove cap (3).

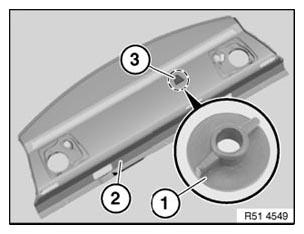

Fig 2: Identifying Nut, Rear Window Shelf And Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insulating mat in area "A" on underside of new panel (1).

NOTE: Insulating mat is perforated in area "A".

Cut out opening (3) at moulding (2).

Drill areas "B" of opening (3) with 8 mm dia. drill bit and cut out remaining material at moulding (2) with a scalpel.

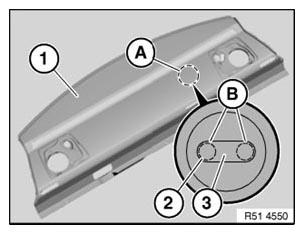

Fig 3: Identifying Opening And Moulding

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Ensure a clean cut so that the panel material (1) is not damaged.

Specification with Top Tether eyelets for child seat:

Remove insulating mat in area "A" on underside of new panel (1).

NOTE: Insulating mat is perforated in areas "A".
Cut out opening (3) at moulding (2) with a scalpel.

IMPORTANT: Ensure a clean cut so that the panel material (1) is not damaged.

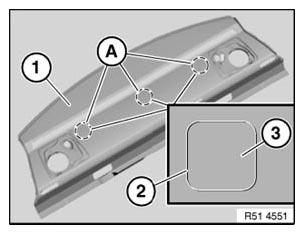

Fig 4: Identifying Panel Material
