51 46 001 Removing and installing panel for rear window shelf (parcel shelf)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left/right trim panel for roof pillar (C-pillar)
- Remove rear mid-range speaker on left/right. See SPEAKERS .
- Release bottom rear seat belts
. See 72 11 092 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT SEAT BELTS
and 72 11 101 REMOVING AND INSTALLING/REPLACING REAR CENTER SEAT BELT
.
Version with child seat holder:
- Remove all Top Tether eyelets for child seat
. See 72 14 ... REMOVING AND INSTALLING/REPLACING TOP TETHER EYELETS FOR CHILD SEAT
.
Version without through-loading system:
- Remove backrest
for rear seats. See 52 24 010 REMOVING AND INSTALLING / REPLACING BACKREST
.
Version with through-loading system:
- Remove trim on rear window shelf
- Remove left/right armrest side sections
. See 52 26 008 REMOVING AND INSTALLING/REPLACING REST SIDE SECTION ON LEFT OR RIGHT REAR SEAT BACKREST
.
Version with roller sun blind:
- If necessary, remove drawer in luggage compartment
Version with roller sun blind:

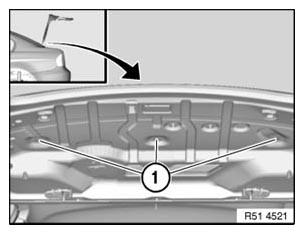

Release screws (1).
Tightening torque 51 46 3AZ , see 51 46 PANEL, REAR PARCEL SHELF, ROLLER SUN BLIND .
Version with roller sun blind:

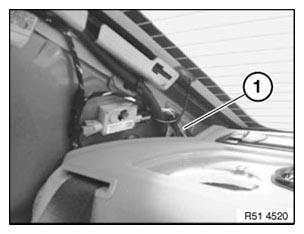

Disconnect connector (1).
All versions:
Remove plate (1).
Pay attention to catches (2).

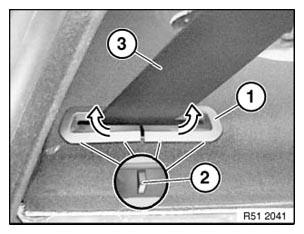

Remove trim (1) and feed out from belt (3).
Version without through-loading system:
Release clips (2).
All versions:

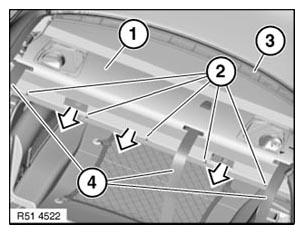

Pull out rear window shelf (1) towards front and feed out belts (4).
Installation:
Make sure rear window shelf (1) is correctly fed under grid (3)
