51 46 ... Removing and installing/replacing trim on rear window shelf (parcel shelf)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release rear-seat backrest and fold forward.

Release clips (1) and remove decorative trim (2) towards front.

Installation:

If necessary, replace clips (1).

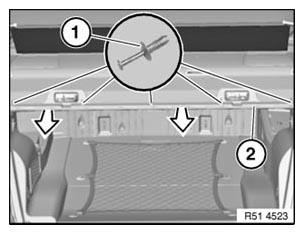

Fig 1: Identifying Clips And Decorative Trim

Courtesy of BMW OF NORTH AMERICA, INC.
