51 23 100 Removing and installing/replacing right engine hood/bonnet lock

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front intake duct . See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (S65) .

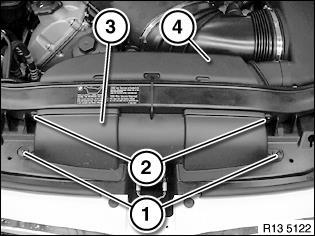

Fig 1: Removing Expansion Rivets (1), Screws (2) & Intake Duct (3 & 4)
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

NOTE: The operation "Disconnect cable for hood/bonnet locks" ends here.

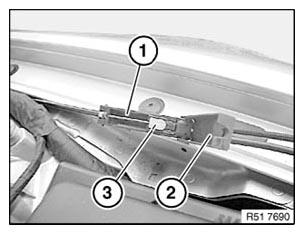

Fig 2: Identifying Bowden Cable And Coupling

G06202619

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2).

Fig 3: Identifying Screws And Bumper Trim

G04752443

Courtesy of BMW OF NORTH AMERICA, INC.

Release Bowden cable (1) from holder (2).

Fig 4: Identifying Bowden Cable And Holder

G04752652

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 23 2AZ , see 51 23 HOOD/BONNET LOCKS .

Carefully pull bumper trim (2) forwards and feed out hood/bonnet lock (3) with cable.

Fig 5: Identifying Bumper Trim And Hood/Bonnet Lock

G04752653

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable (1) from hood/bonnet lock (2).

When replacing cable for hood/bonnet locks:

Feed cable (1) out of front wall (3).

Fig 6: Identifying Cable And Front Wall

G04752654

Courtesy of BMW OF NORTH AMERICA, INC.
