51 71 447 Removing and installing/replacing trim for cover on left or right side member (up to 08/09) (sedan)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach wheel arch cover from front/rear side member cover

Release bolts (1).

Fig 1: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

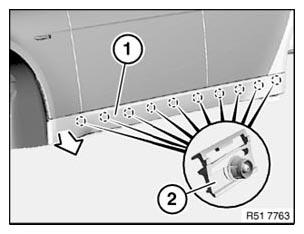

Unclip panel (1) at holders (2) in direction of arrow and remove.

Fig 2: Identifying Panel And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installation, soak holders (1) in water.

If necessary, detach holders (1) from body and fit on panel (3).

If necessary, detach grommets (2) from holders (1) and place on body.

If necessary, replace faulty holders (1) and grommets (2).

Fig 3: Identifying Faulty Holders And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
