51 71 120 Removing and installing/replacing cowl panel seal

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove moulding on rain gutter on left/right

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Pull back tab (1) and release screw (2) underneath.

Installation:

Water drainage channel (3) must not be clogged.

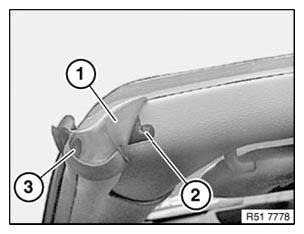

Fig 1: Identifying Water Drainage Channel With Back Tab And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seal (1) in direction of arrow from window frame.

Installation:

If necessary, moisten seal (1) with water for better fitting.

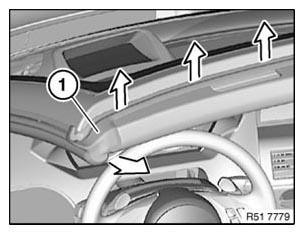

Fig 2: Moisten Seal

Courtesy of BMW OF NORTH AMERICA, INC.
