51 48 060 Removing and installing/replacing sound insulation in left or right front door

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove door trim panel (sedan) or 51 41 001 Replacing front left or right door trim panel (convertible/coupe)

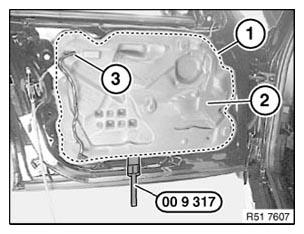

Using special tool 00 9 317 , lever out sealing bead (1) completely or if necessary partially.

Feed cable (3) out of sound insulation (2).

Installation:

Ensure clean bonding and that there are no leaks at sealing bead.

Fig 1: Identifying Cable And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In case of replacement or partial detachments, lay butylene tape (sourcing reference: BMW Parts Service) depending on the conditions on inner door panel or sound insulation.

Seal cable penetrations with butylene tape.

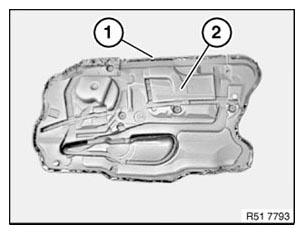

NOTE: Position of butylene tape (1) on sound insulation (2).

Fig 2: Identifying Butylene Tape And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A marking (2) is provided all round on the sound insulation (1).
Butylene tape (3) rests on or inside the marking (2).

Fig 3: Identifying Butylene Tape And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Clean adhesive area on inner door panel with adhesive cleaner (sourcing reference: BMW Parts Service).

Air drying time: 1 minute

IMPORTANT: Adhesive areas must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

Lay 6 mm dia. butylene tape in a single row (sourcing reference: BMW Parts Service) in specified adhesive area on acoustic insulation.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all round.

Contact pressure with hand roller: approx. 30 N/cm²

Manual contact pressure: approx. 10 N/cm²

NOTE: Firm thumb pressure has approx. 50 N/cm²
