51 11 050 Removing and installing/replacing carrier for front bumper trim

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim or 51 11 156 Removing and installing front bumper trim (from 09/08)

Release screws (1) on cooling air guide (2) on left and right.

Disconnect plug connection (3) on outside temperature sensor.

Remove left cooling air guide (2).

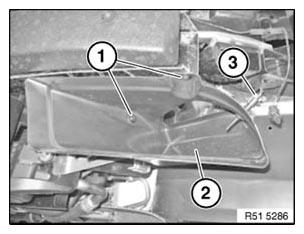

Fig 1: Identifying Screws, Cooling Air Guide And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press right wheel arch cover (1) to one side.

Release screw (2) and remove right cooling air guide.

Installation:

Make sure cooling air guide is installed in correct position.

NOTE: The following work step ends here:

"Removing and installing cooling air guide".

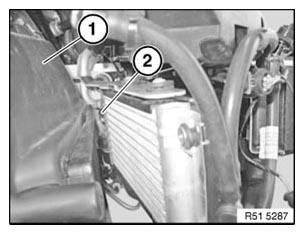

Fig 2: Identifying Screw And Right Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release nuts (2) and blind rivets (3).

Installation:

Blind rivets (3) are not refitted.

If necessary, feed out cable or hose and remove carrier (4).

Tightening torque 51 11 2AZ , see 51 11 FRONT BUMPER ..

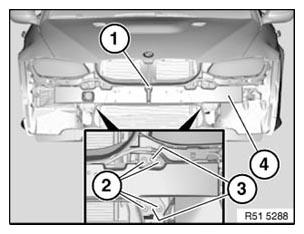

Fig 3: Identifying Nuts And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and convert fanfare horn holder (2).

Modify impact absorber (3) on left and right.

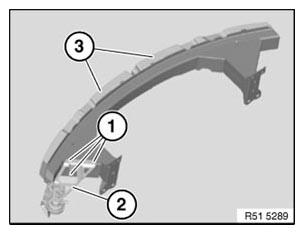

Fig 4: Identifying Screws, Fanfare Horn Holder And Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.
