51 11 ... Removing and installing/replacing cover for headlight washer unit on left

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim or 51 11 156 Removing and installing front bumper trim (from 09/08)

Release catches (1) and remove cover (2).

Installation:

Catches (1) must not be damaged

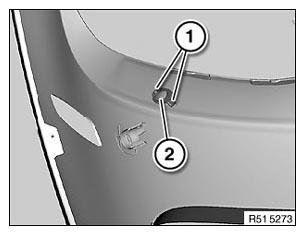

Fig 1: Identifying Catches And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
