51 47 220 Removing and installing/replacing luggage compartment trim panel on right side panel

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for luggage compartment at rear .
Remove flap in luggage compartment panel .

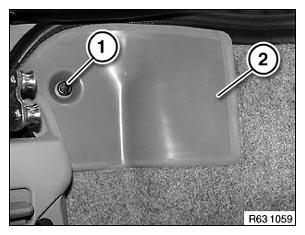

Release clip (1) and remove cover (2).

Fig 1: Identifying Clip And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

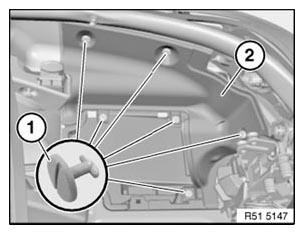

Release clips (1) and feed out panel (2).

Fig 2: Identifying Feed Out Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
