51 47 203 Removing and installing/replacing trim for luggage compartment at rear left or right
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage to roofliner!
When the trim is removed, the lowerable hardtop must not be stowed in the luggage compartment.
Tensioning straps can get caught in the hardtop mechanism and tear when the hardtop is closed.
When the trim is removed, the lowerable hardtop must not be stowed in the luggage compartment.
Tensioning straps can get caught in the hardtop mechanism and tear when the hardtop is closed.

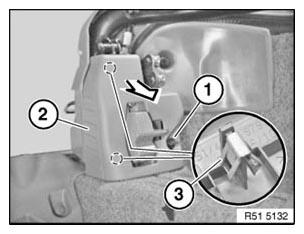

Turn clip (1) through 90°.
Detach trim (2) in direction of arrow from retainers (2).
Installation:
Clip (1) and retainers (3) must not be damaged.
