51 47 210 Removing and installing/replacing trunk trim panel on left side panel

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for luggage compartment at rear .

Release clip (1) and remove cover.

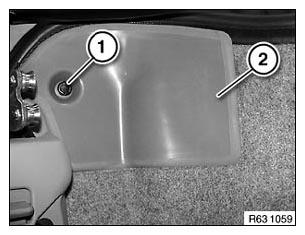

Fig 1: Identifying Trunk Trim Panel Cover And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with CD changer:

Open lid for lowerable hardtop.

If necessary, extend lowerable hardtop.

Release clips (1).

Feed out panel (3) on mucket (2).

NOTE: Do not detach mucket (2) from body.

Release panel (3) at retainers (4) and feed out in upward direction.

Fig 2: Identifying Feed Out Panel On Mucket And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1) and retainers (4).

Version without CD changer:

Open lid for lowerable hardtop.

If necessary, extend lowerable hardtop.

Open flap (1).

Release clips (2).

Fig 3: Identifying Open Flap And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Feed out panel (3) on mucket (2).

NOTE: Do not detach mucket (2) from body.

Fig 4: Identifying Feed Out Panel On Mucket And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) of panel (2) must be correctly seated on storage tray (3).

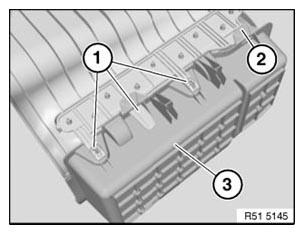

Fig 5: Identifying Lugs Of Panel On Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
