51 47 151 Removing and installing / replacing left luggage compartment wheel arch trim

Necessary preliminary tasks:

• Remove trim on rear apron
• If necessary, remove storage tray. See  51 47 ... Removing and installing/replacing storage tray in luggage compartment on left   in luggage compartment on left.

  Version with through-loading system:

• Fold down backrest for left rear seat

Lever out socket (1) in direction of arrow and disconnect plug connection.

Fig 1: Identifying Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) and catches (2) must not be damaged.

Fig 2: Identifying Guide And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Remove warning triangle (1).

Turn bracket (2) approx. 90° in counterclockwise direction and remove.

Turn bracket (3) approx. 90° in clockwise direction and remove.

Release expansion rivets (4).

Fig 3: Identifying Bracket And Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

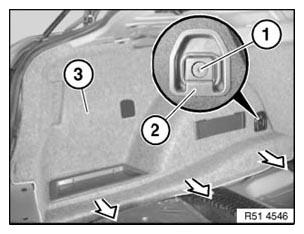

Release screw (1) and remove trim (2).

Pull out luggage compartment wheel arch trim (3) in inwards direction.

Fig 4: Identifying Screw And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation in version without through-loading system only:

Installation:

To install luggage compartment wheel arch trim, proceed as follows:

• Remove rear seat  . See SEATS .
• Unscrew screws (1).

  Tightening torque 52 24 01AZ  , see 52 24 REAR SEAT (NORMAL), MANUAL .

• Press backrest from luggage compartment in direction of vehicle interior and feed luggage compartment wheel arch trim between wheel arch and backrest

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, release trim (1) at catches (2) from interior and remove rubber pull (3).

Fig 6: Identifying Trim, Catches And Rubber Pull

Courtesy of BMW OF NORTH AMERICA, INC.
