36 11 105 Removing and installing (replacing) RDC (Tyre Pressure Control) control unit (Coupe/Convertible)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove panel for passenger compartment partition . See 51 47 143 REMOVING AND INSTALLING/REPLACING PANEL FOR PASSENGER COMPARTMENT PARTITION .
Disconnect negative battery cable . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .

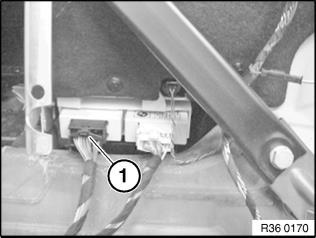

Disconnect plug connection (1).

Fig 1: Disconnect Plug Connection (1)

Courtesy of BMW OF NORTH AMERICA, INC.

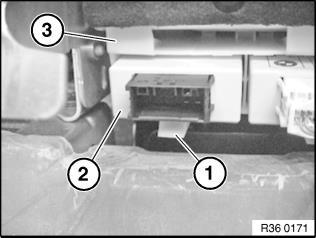

Unlock catch (1) and remove control unit for RDC (2) from device carrier (3).

Fig 2: Unlock Catch (1) And Remove Control Unit For RDC (2) From Device Carrier (3)

Courtesy of BMW OF NORTH AMERICA, INC.
