35 11 000 Removing and installing complete bearing block for foot pedal

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove clutch pedal .

Release screws (1) and gently press clutch master cylinder (2) to one side.

Installation:

Line remains connected.

Replace self-locking nuts.

Tightening torque see.21 52 CLUTCH OPERATION (HYDRAULIC) .

Fig 1: Identifying Screws And Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

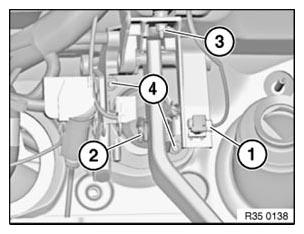

Disconnect plug connection (1).

Remove locking clip (2) and pull out pin.

Unscrew nut (3).

Release nuts (4) and gently swivel bearing block to left and remove.

Installation:

Tighten nuts (4) before nut (3).

Replace self-locking nuts.

Tightening torque, see 35 11 PEDAL ASSEMBLY CONSOLE .

Fig 2: Identifying Plug Connection, Locking Clip And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
