33 10 010 Removing and installing/replacing rear differential (M3)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 2 030
- 33 5 200
- 33 5 206
See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
See REAR AXLE - SPECIAL TOOLS .
WARNING:
Risk of injury!
Rear differential must be lashed with tightening strap 33 5 206 to prevent it falling out when the output shafts are forced off.
Rear differential must be lashed with tightening strap 33 5 206 to prevent it falling out when the output shafts are forced off.
Necessary preliminary tasks:
- Remove propeller shaft from rear differential and tie back. See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (CONSTANT-VELOCITY JOINT) .
- Remove both output shafts from rear differential and tie back.
Position special tool 33 5 200 on workshop jack 00 2 030 .
Support rear differential with special tool 33 5 200 .
Lash rear differential with tightening strap 33 5 206 to special tool 33 5 200 .

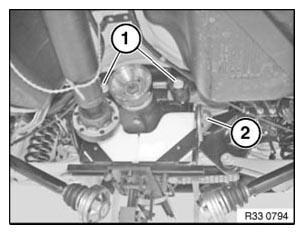

Release screws (1, 2).
Slowly lower workshop jack 00 2 030 .
IMPORTANT:
Adhere to the following installation sequence in order to prevent distortion of the rear differential during installation and thereby avoid potential complaints about noise.
Installation sequence:
- Install rear differential with workshop jack 00 2 030 and special tool 33 5 200 in rear axle carrier
- Insert bolts (1) (do not tighten down)
- Insert bolt (2) from rear and replace nut (do not tighten down)
- Lower workshop jack 00 2 030
- Tighten down screws (1)
Tightening torque 33 17 1AZ . See 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS .
- Tighten down screw (2)
Tightening torque 33 17 1AZ . See 33 17 REAR AXLE DIFFERENTIAL MOUNTINGS .
After installation:
- Check rear differential oil level , correct if necessary.
