33 17 005 Replacing rubber mount for rear differential mounting at rear (M3)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 0 100
33 0 101
33 0 102
33 0 103
33 0 104
33 0 105
33 0 106

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove rear differential

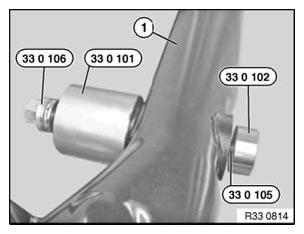

Withdraw PUR mount with special tools 33 0 101 , 33 0 102 , 33 0 105 , 33 0 106 from rear axle carrier (1).

Fig 1: Removing PUR Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and new rear PUR mount (2) with Circolight.

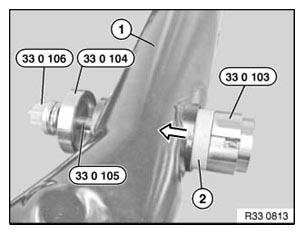

Draw PUR mount (2) in direction of arrow with special tools 33 0 103 , 33 0 104 , 33 0 105 and 33 0 106 into rear axle carrier (1).

Installation:

Observe mounting sequence.

Fig 2: Installing PUR Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting sequence:

To avoid damaging the PUR mount (1), draw in the mount in stages.

Procedure:

Draw PUR mount (1) 5 mm into rear axle carrier
Release special tool 33 0 100 .

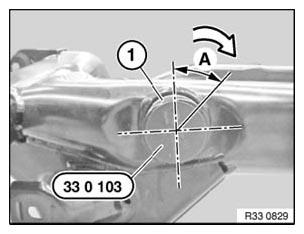

Turn special tool 33 0 103 in direction of arrow (A) 45°
Repeat procedure until PUR mount (1) is pressed in up to stop

Fig 3: Identifying PUR Mount

Courtesy of BMW OF NORTH AMERICA, INC.
