33 17 004 Replacing all front rubber mounts for rear differential mounting

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 3 312
33 4 161
33 4 162
33 4 166
33 4 311
33 4 312
33 4 465
33 4 466

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove rear differential

Withdrawing front rubber mount:

Withdraw front rubber mount with special tools 33 3 312 , 33 4 161 , 33 4 162 , 33 4 466 and 33 4 465 .

NOTE: Milled recess of special tool 33 4 161 must point upwards to rear axle carrier.

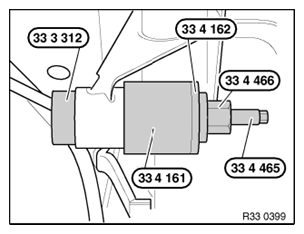

Fig 1: Removing Front Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing front rubber mount:

IMPORTANT: Coat bearing bushing in rear axle carrier and front rubber mount with Circolight).

Front rubber mount must be aligned by way of slots (1) to vehicle transversal direction.

Fig 2: Identifying Front Rubber Mount Slots

Courtesy of BMW OF NORTH AMERICA, INC.

Insert front rubber mount in special tool 33 4 311 .

Align front rubber mount so that side slots (1) line up with marking (M) on tool.

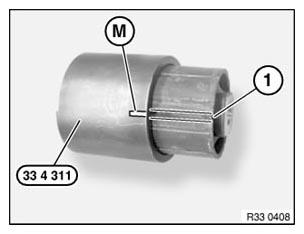

Fig 3: Identifying Front Rubber Mount Side Slots

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in front rubber mount with special tools 33 4 465 , 33 4 466 , 33 4 166 , 33 4 311 and 33 4 312 as far as it will go.

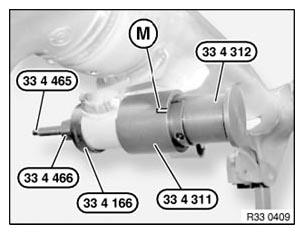

Fig 4: Installing Front Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
