33 32 071 Replacing one upper control arm

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the control arm is detached from the rear axle carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check .

Necessary preliminary tasks:

Remove rear wheel . See WHEEL AND TIRES - REPAIR .

Release screw (1).

Installation:

If necessary, raise brake disk in drive flange area with workshop jack.

Replace screw.

Tightening torque 33 32 6AZ . See 33 32 CONTROL ARMS AND STRUTS .

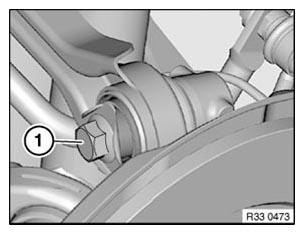

Fig 1: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure during installation that in the connection area to the wheel carrier the tapered end of the bearing bushing (of the rubber mount) points in the direction of the wheel carrier.

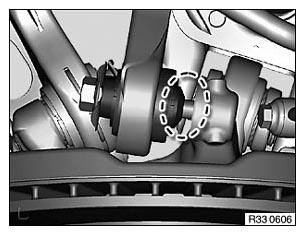

Fig 2: Identifying Connection Area Of Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw towards front.

Unclip line holder (3) for pulse generator or brake pad sensor on control arm.

Remove control arm (2).

Installation:

Bolt head points in direction of travel.

Replace self-locking nut.

Tightening torque 33 32 5AZ . See 33 32 CONTROL ARMS AND STRUTS .

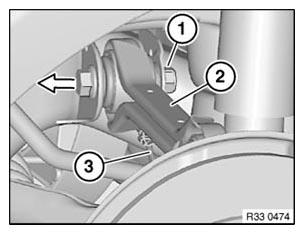

Fig 3: Identifying Control Arm, Line Holder And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check
