33 33 001 Replacing left or right rear axle carrier compression strut
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety instructions
for raising the vehicle
Driving without compression struts is not permitted!
Risk of damage!
The rear axle carrier must be supported at the front is both compression struts have to be replaced!
Driving without compression struts is not permitted!
Risk of damage!
The rear axle carrier must be supported at the front is both compression struts have to be replaced!
Necessary preliminary tasks:
- Remove underbody cover . See 51 75 001 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY COVER .

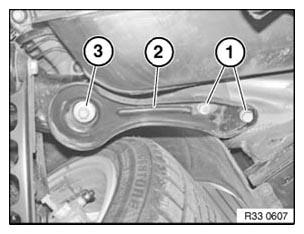

Release screws (1).
Installation:
Replace screws.
Tightening torque 33 33 2AZ . See 33 33 REAR AXLE SUSPENSION .
Release screw (3) and remove compression strut (2).
Installation:
Check threads for damage; if necessary, repair with Helicoil thread inserts .
Tightening torque 33 33 1AZ . See 33 33 REAR AXLE SUSPENSION .
