51 75 001 Removing and installing/replacing left or right underbody cover

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Work shown on E90 by way of example, deviations in detail are possible in other models.

Release clips (1). Release screws (2). Remove underbody cover (3).

Installation: Replaced damaged clips (1). Make sure underbody cover (3) is correctly seated.

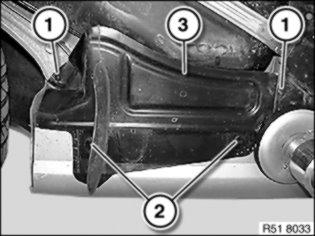

Fig 1: Identifying Clips, (1), Screws (2) & Underbody Cover

Courtesy of BMW OF NORTH AMERICA, INC.
