13 41 550 Replacing idle actuator (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Check stored fault messages
Switch off ignition
Remove intake air manifold . See 11 61 050 REMOVING AND INSTALLING AIR INTAKE MANIFOLD (S65) .
Partially disconnect engine wiring harness , raise cable duct. See 12 51 001 REPLACING WIRING HARNESS SECTION FOR ENGINE (S65) .
Remove tank venting valve

Release air intake hose (1).

Release idle air hose (2).

Replace clamps.

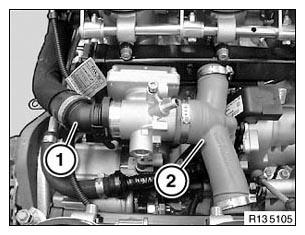

Fig 1: Identifying Idle Air Hose And Air Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection and disconnect.

Carefully lever idle actuator out of holder.

Fig 2: Identifying Plug Connection And Idle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

NOTE: Now clear the fault memory.
