13 90 500 Replacing tank venting valve (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition
Remove intake air manifold. See 11 61 050 REMOVING AND INSTALLING AIR INTAKE MANIFOLD (S65) .

NOTE: The tank venting valve is fitted under the intake air manifold.

Unlock connector and remove.

Unlock hose on tank venting valve and disconnect.

Release clamp, detach hose.

Release bolt on bracket.

Remove tank venting valve.

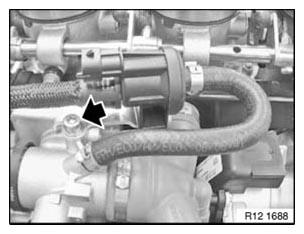

Fig 1: Locating Bracket Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
