13 62 610 Replacing pulse generator on crankshaft/transmission (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition
Remove underbody protection . See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION and 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Remove reinforcement plate . See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE (M3) .

Release screws (1).

Remove cover.

Fig 1: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector and remove.

Release screw (1).

Remove pulse generator.

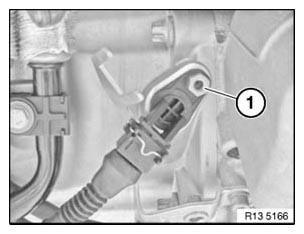

Fig 2: Identifying Pulse Generator Connector Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
Add final details to vehicle.
