12 41 020 Removing and installing/replacing starter (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition
Disconnect battery negative lead and cover. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove intake air manifold . See 11 61 050 REMOVING AND INSTALLING AIR INTAKE MANIFOLD (S65) .
Remove idle actuator . See 13 41 550 REPLACING IDLE ACTUATOR (S65) .
Remove throttle valve actuating motor on left. See 13 62 540 REMOVING AND INSTALLING/REPLACING THROTTLE VALVE ACTUATING MOTOR (S65) .

Remove idle actuator mounting.

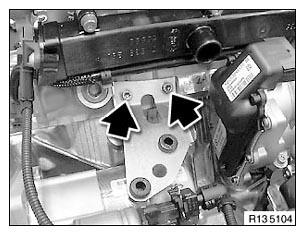

Fig 1: Locating Idle Actuator Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Unfasten nut.

Tightening torque 12 41 1AZ , see STARTER WITH MOUNTING .

Remove battery positive lead (2).

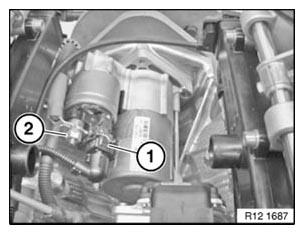

Fig 2: Identifying Plug And Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release screws (2).

Tightening torque 12 41 2AZ , see STARTER WITH MOUNTING .

Pull starter motor out of transmission mount and remove.

Fig 3: Identifying Transmission Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check starter pinion and ring gear for damage, replace damaged parts if necessary.

Add final details to vehicle.
