11 36 148 Removing and installing/replacing right inlet VANOS gear (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 120
11 5 320
11 5 370
11 9 970
11 9 971
11 9 972

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

See ENGINE - SPECIAL TOOLS .

IMPORTANT: Central bolts on VANOS gears have left-hand threads.
Do not release the central bolt of the adjustment units without the special tool 11 9 970 .
Grease contact surfaces of central bolts with copper paste.

Necessary preliminary tasks:

Remove right cylinder head cover

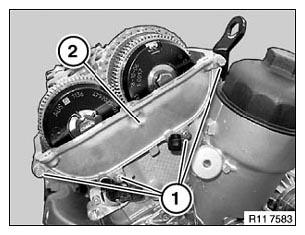

Release bolts (1) on cylinder bank 2.

Remove timing case cover (2).

Installation:

Replace seal.

Fig 1: Identifying Cylinder Bank 1 Bolts And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Both inlet and exhaust camshafts can be adjusted in the 1st cylinder firing TDC position.
Danger of mixing up both special tool bores.
The procedure for checking timing is different from that for adjusting.

Fig 2: Identifying Timing Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at central bolt.

Secure crankshaft with special tool 11 5 320 in firing TDC position of cylinder no. 1 .

Fig 3: Identifying Special Tool (11 5 320) On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Position of inlet camshafts, cyl. 1-4, in firing TDC position of cylinder no. 1.

Dihedron of inlet camshafts is vertical to cylinder axis, letters/numbers on camshafts point upwards (E1).

Fig 4: Identifying Letters/Numbers On Camshafts Point (E1)

Courtesy of BMW OF NORTH AMERICA, INC.

Position of exhaust camshafts, cyl. 1-4, in firing TDC position of cylinder no. 1.

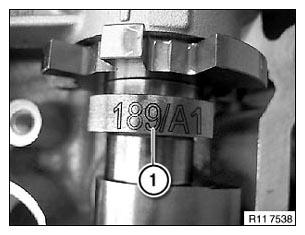

Dihedron of camshafts is vertical to cylinder axis, letters/numbers (A1) on camshafts (1) point upwards.

Fig 5: Identifying Letters/Numbers (A1) On Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

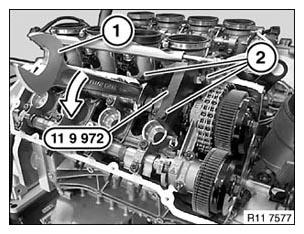

Rotate inlet camshaft with open-end wrench (1) with minimal effort at hexagon head in direction of arrow until special tool 11 9 972 can be attached.

Designation (E1) on dihedron points upwards.

Secure special tool 11 9 972 with bolts (2) on cylinder head to 10 Nm.

Fig 6: Rotating Inlet Camshaft With Open-End Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

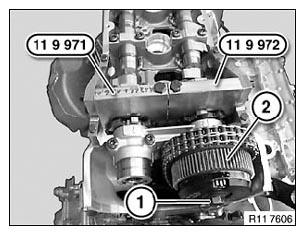

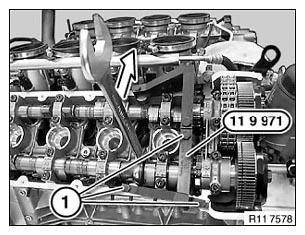

Rotate exhaust camshaft with open-end wrench (1) with minimal effort at hexagon head in direction of arrow until special tool 11 9 971 can be attached.

Designation (A1) on dihedron points upwards.

Secure special tool 11 9 972 with bolts (2) on cylinder head to 10 Nm.

Fig 7: Identifying Special Tool (11 9 971) On Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

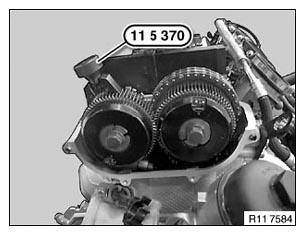

Align gearwheels on exhaust adjustment unit with special tool 11 5 370 .

Fig 8: Identifying Special Tool (11 5 370)

Courtesy of BMW OF NORTH AMERICA, INC.

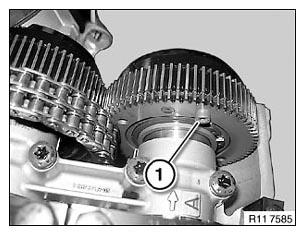

IMPORTANT: Removal/installation is not possible without hexagon socket screw (2).
Hexagon socket screw (1) must not be longer than 10 mm.
Gearwheels of exhaust VANOS gear are pretensioned with a spring.

Insert M5x10 hexagon socket screw on VANOS gear.

Fig 9: Identifying Socket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: CCW thread!

Release central bolt (1).

Installation:

Replace central bolt (1).

Remove exhaust adjustment unit

Fig 10: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If the hexagon socket screw is released or forgotten by mistake, the gear teeth can be readjusted with special tool 11 5 370 .

Screw in knurled screw on special tool 11 5 370 until gearwheel (1) lines up with bore (see arrow) on thread.

Failure to tension the exhaust VANOS gear (1) will result in rattling noises at idle.

NOTE: Picture shows (S85).

Fig 11: Identifying Special Tool (11 5 370) And Gearwheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

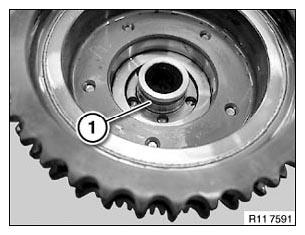

Check O-ring (1) on VANOS gear, replace if necessary.

Fig 12: Identifying VANOS Gear O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

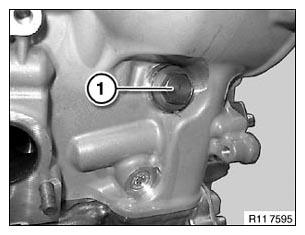

Release chain tensioner (1).

Installation:

Replace sealing ring.

Tightening torque: 11 31 1AZ . See 11 31 CAMSHAFT .

Fig 13: Identifying Right Hydraulic Chain Tensioner Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: CCW thread!

Release central bolt (1).

Installation:

Replace central bolt (1).

Remove inlet adjustment unit (2).

Fig 14: Identifying Central Bolt And Inlet Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Lay timing chain (1) on inlet camshaft (2).

Fig 15: Identifying Timing Chain And Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

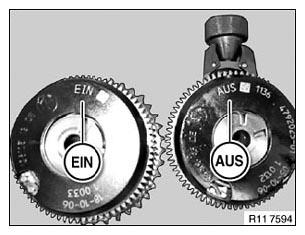

EIN Inlet adjustment unit

AUS Exhaust adjustment unit

Fig 16: Identifying EIN Inlet Adjustment Unit And AUS Exhaust Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Replace central bolt of adjustment unit.
Central bolt must be fully screwed once.

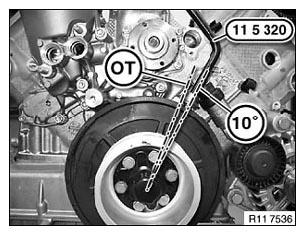

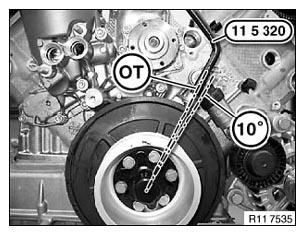

IMPORTANT: Rotate crankshaft at central bolt back until special tool 11 5 320 can be secured in the 10° position.

Fig 17: Rotating Crankshaft At Central Bolt With Special Tool (11 5 320)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat contact face of new central bolt (1) with copper paste.

Fig 18: Coat Contact Face Of New Central Bolt (1) With Copper Paste

Courtesy of BMW OF NORTH AMERICA, INC.

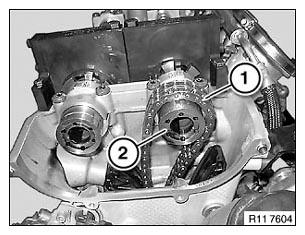

Position inlet adjustment unit with timing chain on inlet camshaft.

Screw in central bolt (2) hand-tight.

Position exhaust adjustment unit on exhaust camshaft.

Hexagon socket screw points upwards.

Screw in central bolt (1) hand-tight.

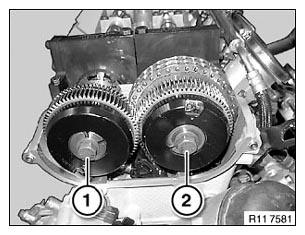

Fig 19: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Install chain tensioner (1).

Tightening torque: 11 31 1AZ . See 11 31 CAMSHAFT .

Fig 20: Identifying Right Hydraulic Chain Tensioner Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

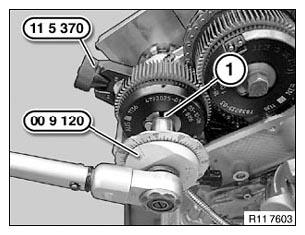

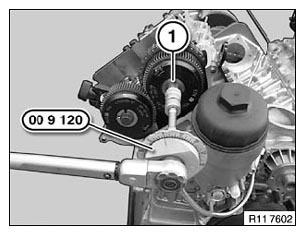

Screw in central bolt (1) with special tool 00 9 120 .

Joining 10 Nm
Joining 20 Nm
Settling torque 80 Nm
Torsion angle 200°
Unscrew central bolt.
Joining 10 Nm

Fig 21: Securing Central Bolt With Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) and screw with special tool 00 9 120 .

Joining 10 Nm
Joining 20 Nm
Settling torque 80 Nm
Torsion angle 200°
Unscrew central bolt.
Joining 10 Nm

Fig 22: Securing Central Bolt With Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hexagon socket screw (1) or special tool 11 5 370 .

Fig 23: Identifying Socket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

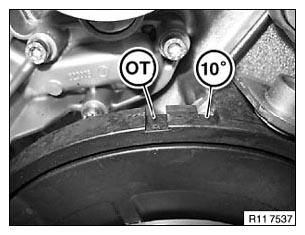

Release special tool 11 5 320 and continue barring engine at central bolt 10° to firing TDC position of cylinder no. 1 .

Installation:

This minimizes timing chain and gearwheel play.

Secure crankshaft with special tool 11 5 320 .

Fig 24: Identifying Special Tool (11 5 320) On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Cylinders 1 to 4:

Always start screwing on the inlet side.

Secure central bolt (1) with special tool 00 9 120 .

IMPORTANT: Central bolt final tightening.

Joining 20 Nm
Settling torque 80 Nm
Torsion angle 200°

Fig 25: Securing Central Bolt With Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Secure central bolt (1) with special tool 00 9 120 .

IMPORTANT: Central bolt final tightening.

Joining 20 Nm
Settling torque 80 Nm
Torsion angle 200°

Fig 26: Securing Central Bolt With Special Tool (00 9 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Check timing , bank 1, cylinders (1 to 4).

Assemble engine.
