72 12 060 Removing and installing/replacing left or right head airbag

Necessary preliminary tasks:

• Disconnect battery negative lead  . See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
• Follow instructions   for unlocking and locking airbag plug connections
• Remove roofliner  . See 51 44 011 REMOVING AND INSTALLING OR REPLACING ROOFLINER (WITH SLIDE/TILT SUNROOF) .

Head airbag installation summary:

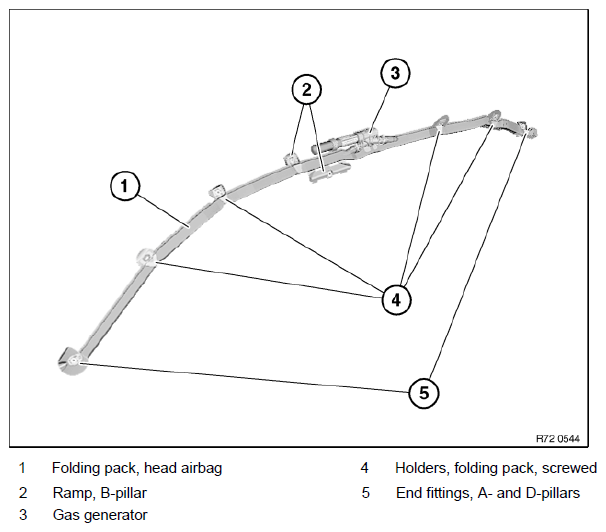

Fig 1: Identifying Head Airbag, Holders, Ramp-B-Pillar And Gas Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on end fitting.

Tightening torque 72 12 05AZ  , 72 12 AIRBAG MODULES .

Release screw (2) on folding pack holder.

Tightening torques 72 12 04AZ  , 72 12 AIRBAG MODULES .

Folding pack holder (3) is screwed to trim for roof pillar at front.

Installation:

If screws (1...3) slip, coat them with Loctite.

If necessary, lever out clip-mounted holder.

Fig 2: Identifying Pack Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, slide wiring harness (2) to one side to release screw (1) on folding pack holder.

Tightening torque 72 12 04AZ  , 72 12 AIRBAG MODULES .

Release screw (3) from folding pack holders.

Tightening torques 72 12 04AZ  , 72 12 AIRBAG MODULES .

Installation:

If screws (1) and (3) slip, coat them with Loctite.

If necessary, lever out clip-mounted holder.

Fig 3: Sliding Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection  (4) and disconnect.

Release screws (1) on B-pillar ramp.

Tightening torque 72 1206AZ  , 72 12 AIRBAG MODULES .

Unscrew bolt (3).

Tightening torque 72 12 03AZ  , 72 12 AIRBAG MODULES .

Remove gas generator (5) with head airbag.

Fig 4: Identifying Gas Generator And Head Airbag

Courtesy of BMW OF NORTH AMERICA, INC.
