61 67 083 Removing and installing/replacing high-pressure nozzle of headlight washer system on left or right (M3)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010

NOTE:

See FUEL SYSTEM - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove front bumper trim. See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM.

To prevent excessive escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 .

Catch any escaping washer fluid if necessary.

Fig 1: Identifying Special Tool On High-Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

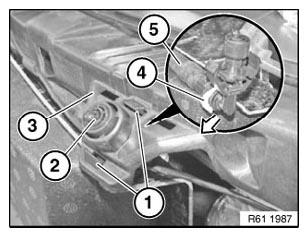

Unlock catches (1) and remove high-pressure nozzle (2) towards rear from headlight arm (3).

Raise retaining clip (4) in direction of arrow and detach high-pressure line (5) from high-pressure nozzle (2).

Installation:

Keep plug connection for high-pressure nozzle (2) and high-pressure line (5) clean and free from grease.

Make high-pressure line (5) and high-pressure nozzle (2) are correctly seated and engaged on high-pressure nozzle (2) and headlight arm (3) respectively.

Carry out a function test before fitting bumper trim.

If necessary, top up washer fluid.
