52 24 400 Replacing seat cover for rear seat

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

See SEATS - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove rear seat

Unclip Isofix protective caps.

Installation:

Make sure Isofix protective caps are correctly engaged.

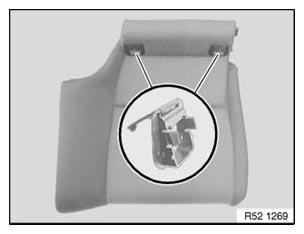

Fig 1: Identifying Isofix Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in area (1) with plastic wedge.

Unhook seat cover in area (2).

Unclip welt (3) from seat pan

Fig 2: Identifying Welt And Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

Release all retainers in marked area.
Remove seat cover from padding
Remove remaining retainers from cover and padding

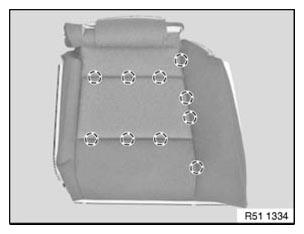

Fig 3: Identifying Cover Retainers
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Seat cover

Fig 4: Inserting Retainer With Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in take-up for trim wires of new cover
Push trim wires into new seat cover

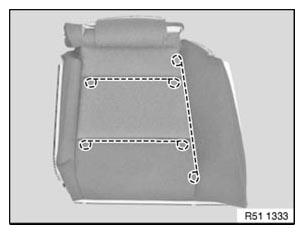

Fig 5: Identifying Trim Wires
Courtesy of BMW OF NORTH AMERICA, INC.
