65 20 055 Removing and installing/replacing aerial base

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS(128i) or MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS (135i) .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) ! See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Unscrew aerial rod
Remove luggage compartment wheel arch trim on left. See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (CONVERTIBLE) .

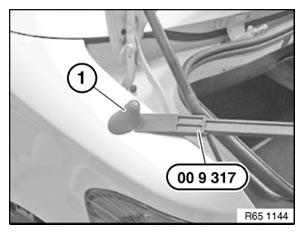

Lever off cap (1) with special tool 00 9 317.

Installation:

Make sure cap (1) is correctly seated.

Fig 1: Removing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

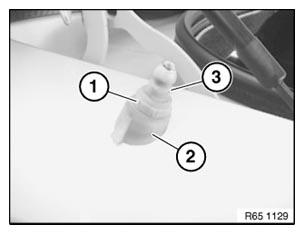

Release plastic nut (1).

Remove rod aerial cover (2) and feed out aerial base (3) towards bottom.

Fig 2: Identifying Rod Aerial Cover And Aerial Base With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

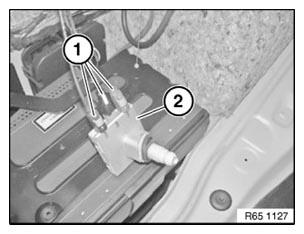

Disconnect plug connections (1) and remove aerial base (2).

Fig 3: Identifying Plug Connections And Aerial Base

Courtesy of BMW OF NORTH AMERICA, INC.

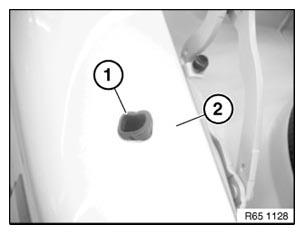

IMPORTANT: Risk of damage by water ingress!
Make sure seal (1) is correctly seated in side section (2).

Fig 4: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

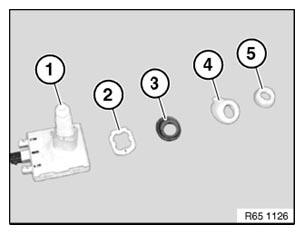

Make sure individual parts are installed in correct sequence.

Aerial base
Lock washer
Seal
Rod aerial cover
Plastic nut

Fig 5: Identifying Components Correct Installation Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
